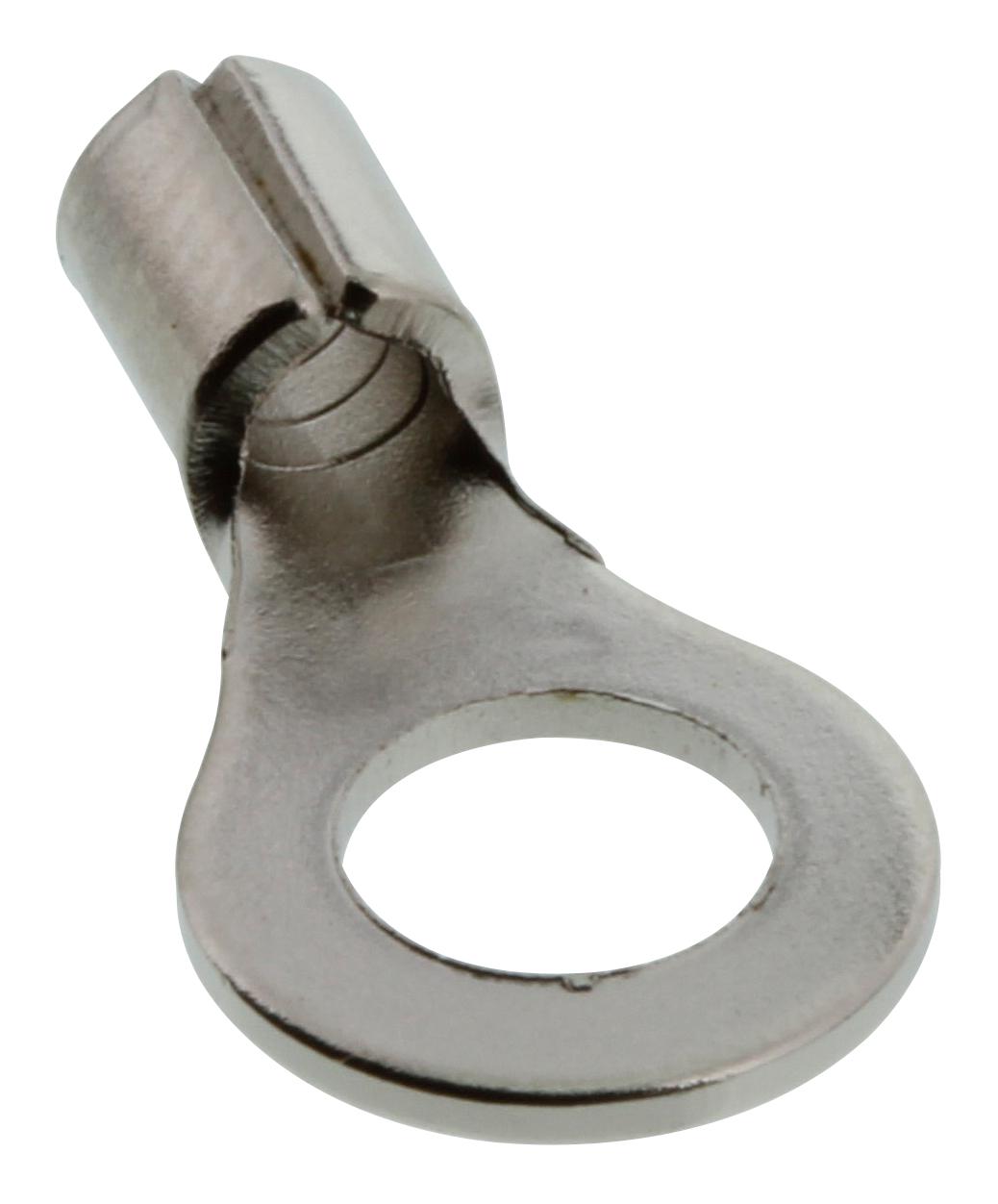

MOLEX 192030388 Krimptite Ring Tongue Terminal
The MOLEX 19203-0388 Krimptite ring tongue terminal is a high-quality component designed for secure and reliable electrical connections. It's ideal for applications requiring robust connections with 14 to 16 AWG wire, utilizing a stud size of 10 (M5). The terminal's closed barrel design and nickel-plated steel construction ensure excellent conductivity and corrosion resistance. Its high-temperature operating range of 483°C makes it suitable for demanding environments. This terminal is RoHS compliant, aligning with environmental regulations and demonstrating a commitment to sustainability.
MOLEX 192030388 Krimptite Ring Tongue Terminal Specifications:
- Product Family: Ring and Spade Terminals
- Series: 19203
- Crimp Quality: Equipment Yes
- Mil-Spec: N/A
- Type: Ring
- Material - Metal: Steel
- Material - Plating: Mating Nickel
- Net Weight: 0.653/g
- Stud Size: 10 (M5)
- Temperature Range - Operating: 483°C
- Termination Interface: Crimp or Compression
- Wire Insulation Diameter: 4.19mm max.
- Wire Size AWG: 14, 16
- Wire Size mm²: 1.50-2.50
- UPC: 822348424771
- EU ELV: Not Relevant
- EU RoHS: Compliant
- China RoHS: Not Contained Per -ED/88/2018 (15 January 2019)
- Halogen-Free: Low-Halogen
- RoHS Phthalates: Not Contained
- Application Tooling - PremiumGrade Hand Crimp Tool: 640030100
- Application Tooling - Crimp Head for the AT-200 Pneumatic Hand Tool: 640070100
