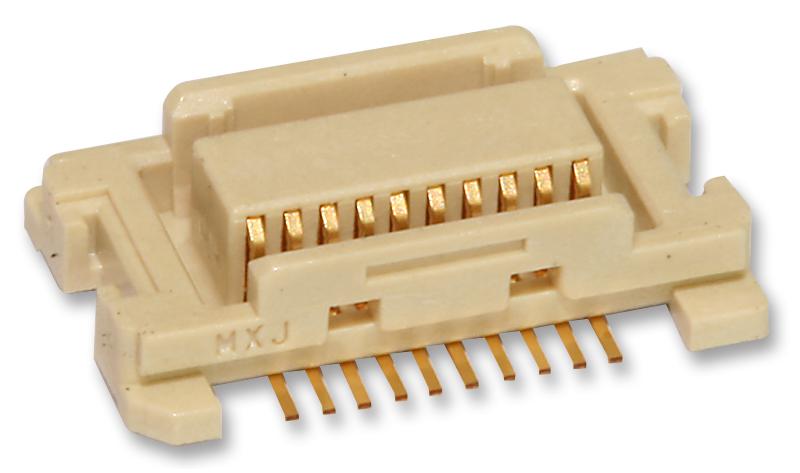

MOLEX 529910208 SlimStack Board-to-Board Connector
The MOLEX 52991-0208 SlimStack connector is a compact board-to-board solution designed for applications where space is at a premium. With a 0.50mm pitch and 20 circuits, this connector offers a high-density connection in a small footprint. Its surface mount design simplifies assembly, and its robust construction ensures reliable performance in various industrial and commercial environments. It is ideal for connecting PCBs in portable devices, instrumentation, and other applications demanding miniaturization.
MOLEX 529910208 SlimStack Board-to-Board Connector Specifications:
- circuits_loaded: 20 Circuits
- circuits_maximum: 20
- mated_height: 3.00mm, 4.00mm
- mated_width: 5.40mm
- material_plating_mating: Gold
- material_plating_termination: Gold
- net_weight: 93.801/mg
- number_of_rows: 2
- orientation: Vertical
- pcb_locator: No
- pcb_retention: None
- pcb_thickness_recommended: 1.60mm
- pitch_mating_interface: 0.50mm
- plating_min_mating: 0.102µm
- plating_min_termination: 0.254µm
- surface_mount_compatible: N/A
- temperature_range_operating: -40° to +105°C
- current_maximum_per_contact: 0.5A
- voltage_maximum: 50V
- halogen_free_status: Low-Halogen
- reach_svhc: Not Contained Per -ED/01/2018 (15 January 2018)
Buy the 52991-0208 MOLEX SlimStack Board-to-Board Connector | myMectronic
Purchase the MOLEX 52991-0208 SlimStack connector securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy MOLEX 529910208?
You can click on the BUY or RFQ button to purchase 529910208 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 529910208?
You can download the 529910208 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 529910208?
MOLEX
