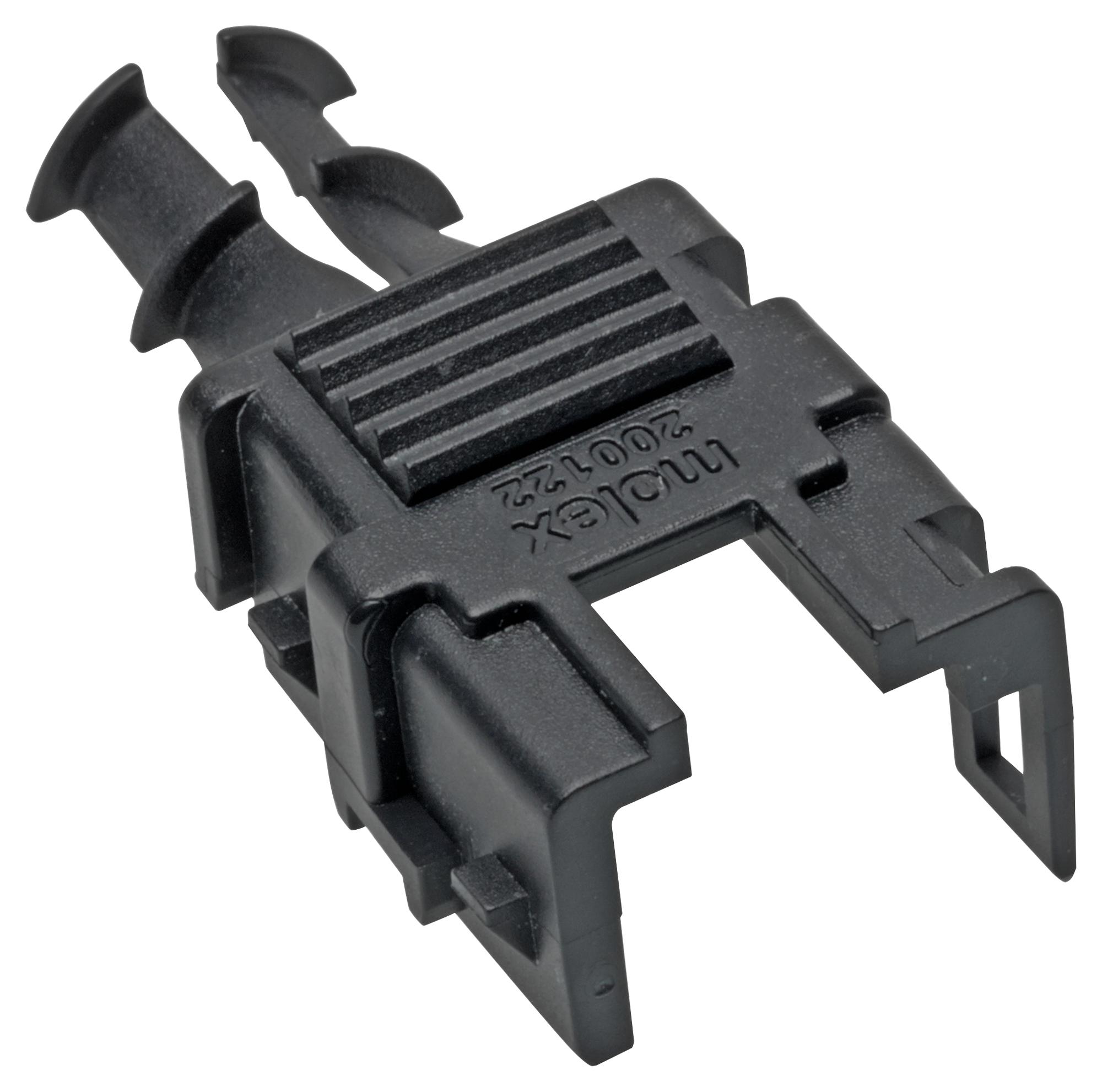

MOLEX 2001220004 Mega-Fit Receptacle Backshell
The MOLEX 200122-0004 is a Mega-Fit receptacle backshell, a crucial component in Mega-Fit Power Connector systems. This backshell provides a secure and organized connection point for receptacle housings, particularly in dual-row configurations with 4 circuits. Constructed from durable nylon resin, it offers excellent insulation and mechanical strength. The backshell's design allows it to lock securely to a mating part, ensuring a reliable electrical connection. It is suitable for a wide range of industrial applications requiring robust power transmission, such as automotive, industrial automation, and consumer electronics.
MOLEX 2001220004 Mega-Fit Receptacle Backshell Specifications:
- Circuits (Loaded): 4
- Circuits (maximum): 4
- Color - Resin: Black
- Lock to Mating Part: Yes
- Material - Resin: Nylon
- Net Weight: 2.030 g
- Number of Rows: 2
- Packaging Type: Bag
- Temperature Range - Operating: -40°C to +105°C
- Lead-freeProcess Capability: N/A
- Engineering Number: F4068.02-P27
- Application Specification: AS-76823-100-001
- Sales Drawing: 2001220000-SD-000
- EU ELV: Not Relevant
- China RoHS: Compliant
- REACH SVHC: Not Contained
- Halogen-Free Status: Low-Halogen
- RoHS Phthalates: Not Contained
Buy the 200122-0004 MOLEX Mega-Fit Receptacle Backshell | myMectronic
Purchase the MOLEX 200122-0004 Mega-Fit Receptacle Backshell securely and efficiently through our online platform.
Buy Now
Frequently Asked Questions
Where can I buy MOLEX 2001220004?
You can click on the BUY or RFQ button to purchase 2001220004 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2001220004?
You can download the 2001220004 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2001220004?
MOLEX
