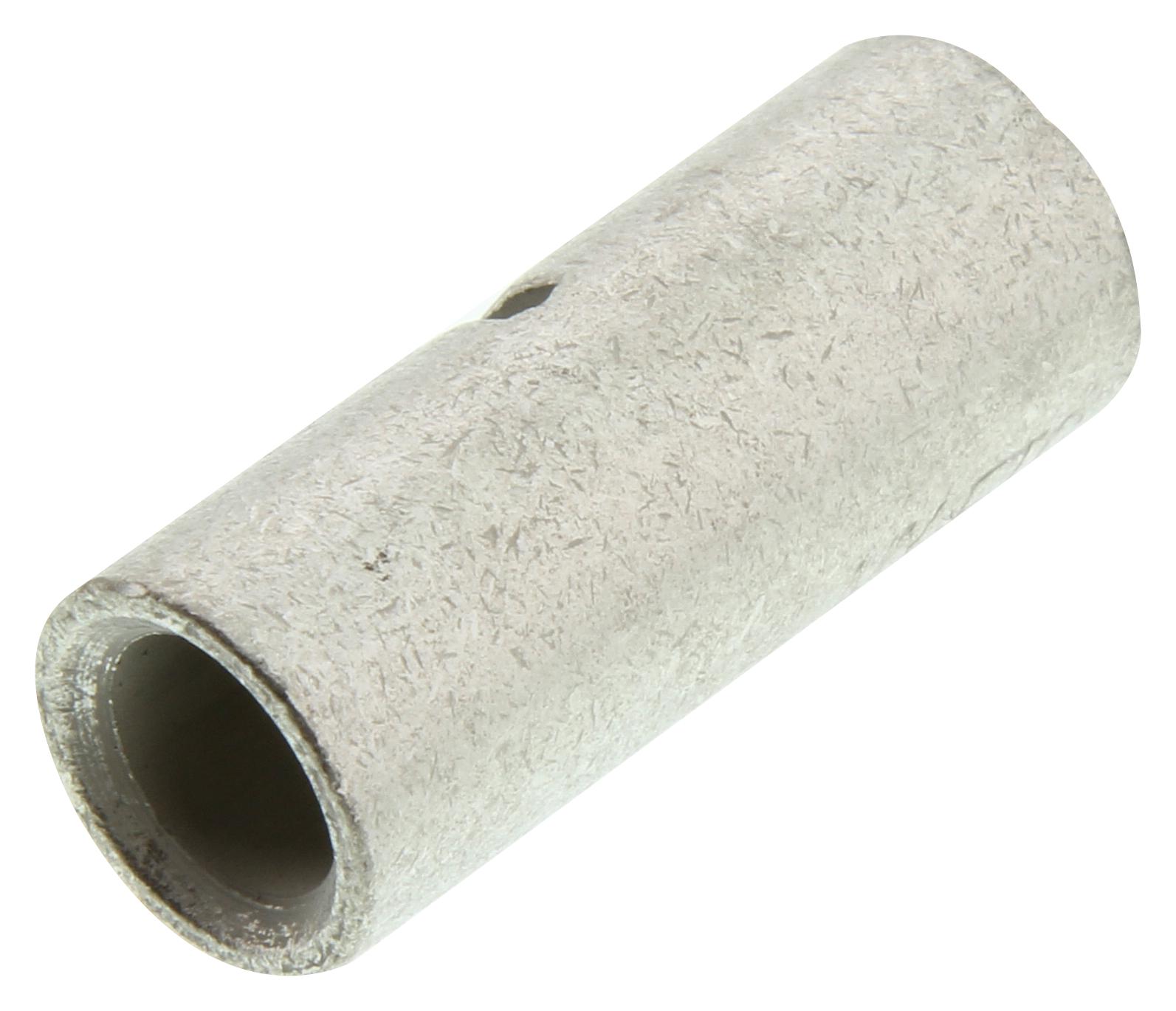

MOLEX 192150045 Butt VersaKrimp Splice
The MOLEX 19215-0045 is a VersaKrimp butt splice specifically engineered for connecting two wires of 4 AWG gauge. Its closed-brazed barrel construction ensures a secure and reliable connection. The splice is plated with tin on both the mating and termination surfaces, providing excellent conductivity and corrosion resistance. This component is ideal for various wire joining applications in automotive, industrial, and consumer electronics environments. It is currently an active part and compliant with RoHS standards, demonstrating MOLEX's commitment to environmental responsibility.
MOLEX 192150045 Butt VersaKrimp Splice Specifications:
- Part Number: 0192150045
- Status: Active
- Overview: Splices
- Description: VersaKrimp Butt Splice for 4 AWG Wire
- Agency Certification CSA: LR18689
- Agency Certification UL: E32244
- Product Family: Splices
- Series: 19215
- Crimp Quality Equipment: Yes
- Mil-Spec: N/A
- Product Name: Butt, VersaKrimp
- UPC: 800755062656
- Barrel Type: Closed - Brazed
- Insulation: None
- Material - Metal: Copper
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Net Weight: 14.092/g
- Packaging Type: Bag
- Temperature Range - Operating: 149°C
- Wire Size AWG: 4
- Voltage - Maximum: 600V
- Lead-free Process Capability: N/A
- Engineering Number: F-364
- Product Specification: PS-19902-011-001, PS-19902-013-001
- Sales Drawing: SD-19215-007
- EU ELV: Not Relevant
- EU RoHS: Compliant
- REACH SVHC: Not Contained Per -ED/88/2018 (15 January 2019)
- Halogen-Free Status: Low-Halogen
- RoHS Phthalates: Not Contained
