MOLEX 2162921041 Discrete Cable Assembly
The 216292 series offers off-the-shelf standard 0.093-inch discrete cable assemblies designed for reliable power and data connections in consumer electronics, data, and networking. These male-to-male cable assemblies feature a 150mm length and up to 12A current capacity, with tin-plated contacts for enhanced durability. Constructed with nylon resin and brass metal components, they include keying and polarizing features to prevent mis-mating. Compatible with standard 0.093-inch connectors, they withstand voltages up to 600V and operate efficiently between -40°C and +105°C, ensuring excellent performance in various environments.
MOLEX 2162921041 Discrete Cable Assembly Specifications:
- Connector Type: Male-Male
- Material - Metal: Brass
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Material - Resin: Nylon
- Cable Length: 150.00mm
- Circuits: 4
- Color - Resin: Natural
- Lock to Mating Part: Yes
- Wire Insulation Diameter: 6.70mm
- Wire Size AWG: 14
- Electrical Current - Max per Contact: 12.0A
- Voltage - Max: 600V AC/DC
- Operating Temperature Range: -40°C to +105°C
- Maximum Cycles Durability: up to 25 cycles
- Plating Min - Mating & Termination: 0.508um
- Certification: RoHS, China RoHS, UL 1015
- Application: Power, Wire-to-Wire, Wire-to-Board
- Connector Pitch: 0.093 inch
- Termination Style: Crimp or Compression

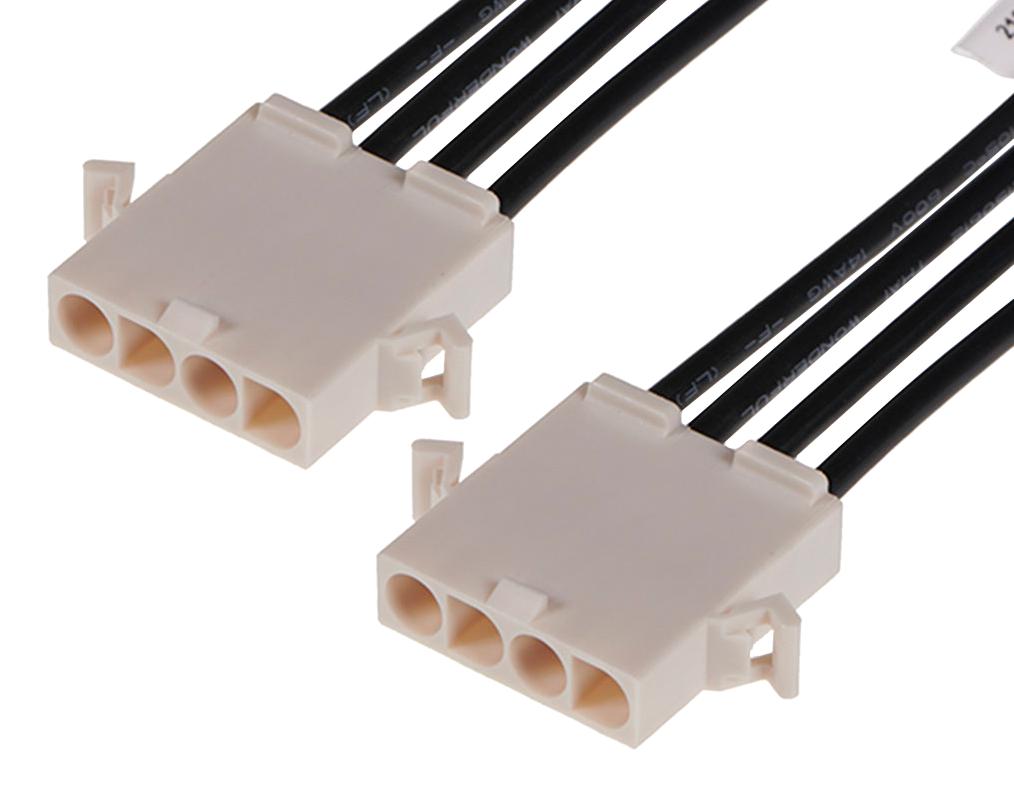

Buy the Buy Molex Cable Assembly Part Number 2162921041 Online
Order the Molex discrete cable assembly 2162921041 online today for a reliable power and data connection solution. This male-to-male connector features a 150mm length, capable of handling up to 12A current and 600V voltage, making it ideal for consumer electronics, data, and communications applications. Made with durable nylon resin and brass components with tin plating, it ensures longevity and corrosion resistance. With keying features to prevent incorrect mating, these assemblies operate efficiently from -40°C to +105°C, delivering performance and ease of installation.
Buy Molex 2162921041 now and experience unmatched reliability and performance for your electronic connections.
Frequently Asked Questions
Where can I buy MOLEX 2162921041?
You can click on the BUY or RFQ button to purchase 2162921041 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2162921041?
You can download the 2162921041 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2162921041?
MOLEX
