MOLEX 192750002 Quick Disconnect Terminal

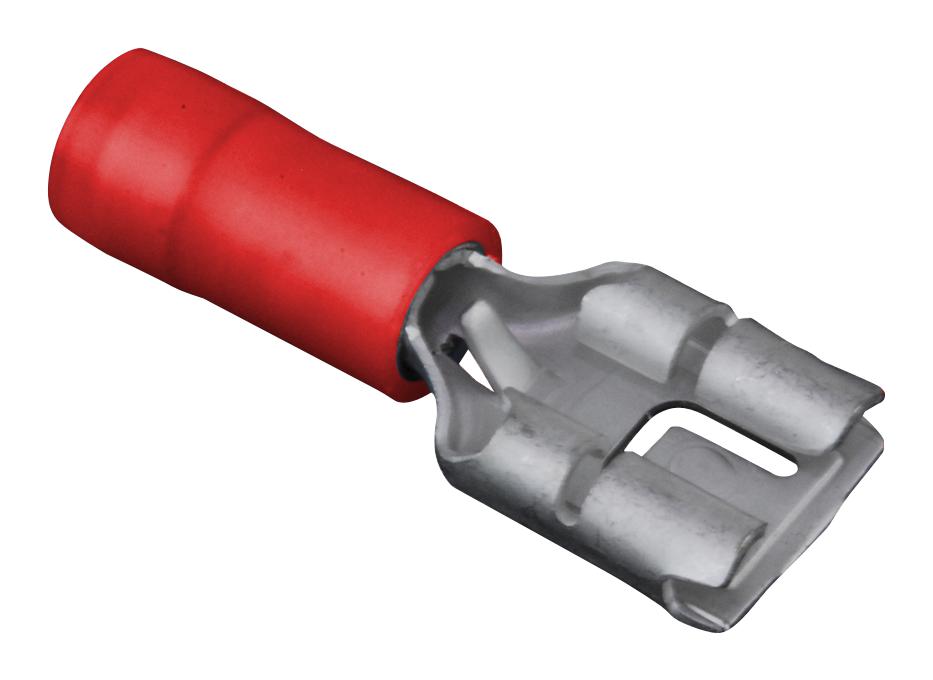

The Quixon Quick Disconnect Female terminal is a reliable electrical connection component designed for easy quick-disconnect applications. Featuring an avikrimp style and partially insulated design in red, this terminal fits 18-22 AWG wire sizes, ensuring a secure and low insertion force connection. Made from brass with tin plating for excellent conductivity and corrosion resistance, it operates within a temperature range of -55°C to +105°C and supports a maximum voltage of 300V. Suitable for various industrial and electronic projects, it is available in a bag packaging for easy handling.
MOLEX 192750002 Quick Disconnect Terminal Specifications:
- Product Family: Quixon Terminals
- Type: Quick Disconnect, Avikrimp Style
- Gender: Female
- Insulation: Partially Insulated, Nylon (PA), Red
- Material - Metal: Brass
- Material - Plating: Tin
- Color - Resin: Red
- Flammability: 94V-2
- Wire Size AWG: 18, 20, 22
- Wire Insulation Diameter: 2.92mm
- Tab Thickness: 0.41mm
- Tab Width: 7.87mm
- Voltage - Maximum: 300V
- Temperature Range - Operating: -55°C to +105°C
- Lock to Mating Part: No
- Packaging Type: Bag
- Physical Dimensions include: Barrel type is crimp, straight orientation, net weight 0.862 grams
Buy the Buy Molex Quixon Quick Disconnect Female Part Number 192750002 Online
Enhance your electrical projects with Molex Quixon Quick Disconnect Female terminals. Designed for 18-22 AWG wires, these reliable connectors feature partial insulation, brass construction, and tin plating for durability and corrosion resistance. Supporting voltage up to 300V and operating from -55°C to +105°C, they provide secure, low-force connections suitable for industrial automation, control panels, and electronic assemblies. Purchase online now for fast delivery and trusted quality for your critical electrical and electronic applications.
Order your Molex Series19275 Quixon Quick Disconnect Female terminal today and enjoy secure, reliable electrical connections for your projects.
