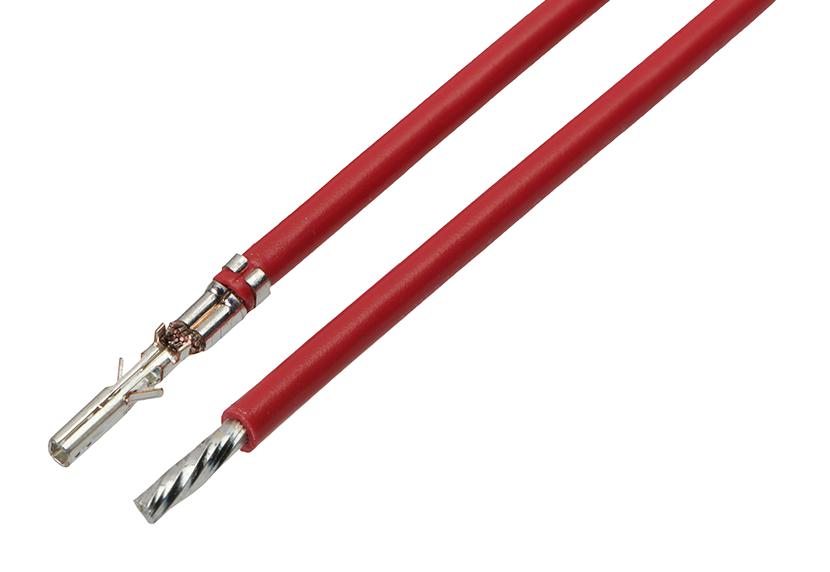

MOLEX 2147612121 Micro-Fit 3.0 Female-to-Pigtail
The MOLEX 214761-2121 is a pre-crimped lead assembly designed for efficient and reliable connections in power, wire-to-board, and wire-to-wire applications. This Micro-Fit 3.0 female-to-pigtail connector offers a convenient, ready-to-use solution, eliminating the need for on-site crimping. The tin plating ensures excellent conductivity and corrosion resistance, while the 18 AWG wire provides adequate current-carrying capacity. It is RoHS compliant and suitable for a wide range of industrial and commercial applications.
MOLEX 2147612121 Micro-Fit 3.0 Female-to-Pigtail Specifications:
- overview: Off-the-Shelf Pre-Crimped Leads
- description: Pre-Crimped Lead Micro-Fit 3.0 Female-to-Pigtail, Tin (Sn) Plated, 75.00mm Length, 18 AWG, Red
- series: 214761
- application: Power, Wire-to-Board, Wire-to-Wire
- assembly_configuration: Pre-crimped Lead Only
- connector_type: Micro-Fit 3.0
- cable_length: 75.00mm
- wire_size: 18 AWG
- color: Red
- gender: Female-Pigtail
- material_metal: Phosphor Bronze
- material_plating_mating: Tin (Sn)
- material_plating_termination: Tin (Sn)
- plating_min_mating: 1.016µm
- plating_min_termination: 1.016µm
- circuits_loaded: 1
- termination_interface_style: Crimp or Compression
- wire_insulation_diameter_max: 1.85mm
- current_max_per_contact: 8.5A
- single_ended: Yes
- upc: 193264574520
- reach_svhc: Not Contained Per - D(2020)4578-DC (25 June 2020)
- halogen_free: Yes
- elv: Not Relevant
- rohs_phthalates: Not Contained
- sales_drawing: 2147611121-000
