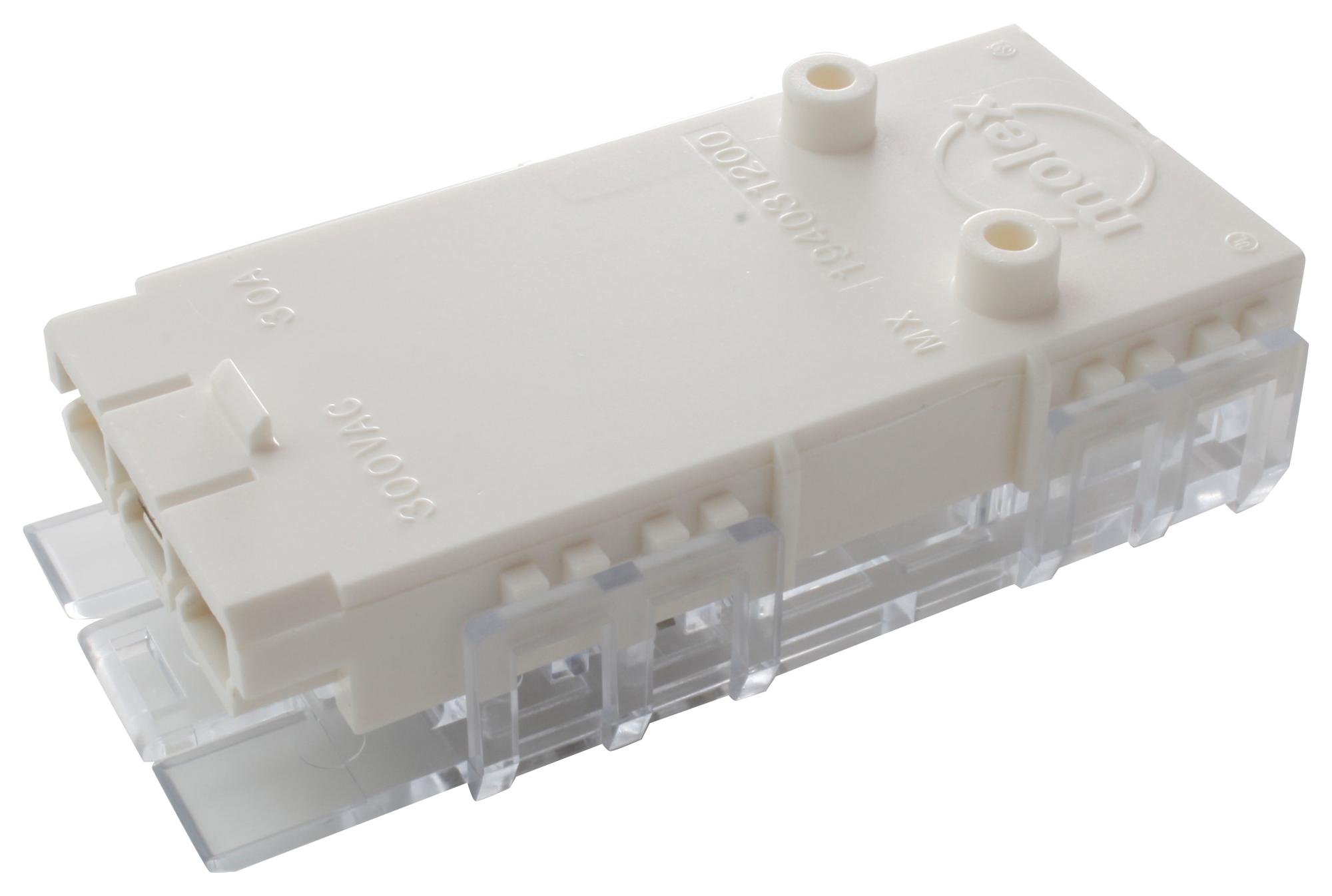

MOLEX 194031300 Self-Contained Power Connector
The MOLEX 19403-1300 Self-Contained Power Connector is a versatile solution for power transmission in various applications, particularly those involving solid or stranded nonmetallic sheathed cable. Designed for use in boats and other environments requiring 110 and 220 AC circuits, this connector offers a secure and reliable connection. It boasts a maximum current capacity of 30.0A and a maximum voltage of 300V, ensuring efficient and safe power delivery. The connector's robust construction, featuring a high copper alloy and tin plating, contributes to its durability and long-term performance. Its vertical orientation and polarized design further enhance its usability and prevent misconnections.
MOLEX 194031300 Self-Contained Power Connector Specifications:
- Circuits (Loaded): 2
- Circuits (maximum): 2
- Circuits Detail: 2 Circuits with Ground
- Durability (mating cycles max): 250
- Flammability: 94-5VA
- Lock to Mating Part: Yes
- Material - Metal: High Copper Alloy
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Net Weight: 49.080/g
- Number of Rows: 1
- Orientation: Vertical
- PCB Retention: N/A
- Packaging Type: Bag
- Panel Mount: No
- Pitch - Mating Interface: 10.10mm
- Plating min - Mating: 1.016µm
- Plating min - Termination: 1.016µm
- Polarized to Mating Part: Yes
- Surface Mount Compatible (SMC): N/A
- Temperature Range - Operating: -35° to +85°C
- Termination Interface: Style: IDT or Pierce
- Wire Size AWG: 10
- Current - Maximum per Contact: 30.0A
- Voltage - Maximum: 300V
Buy the 19403-1300 MOLEX Self-Contained Power Connector | myMectronic
Purchase the MOLEX 19403-1300 Self-Contained Power Connector securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy MOLEX 194031300?
You can click on the BUY or RFQ button to purchase 194031300 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 194031300?
You can download the 194031300 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 194031300?
MOLEX
