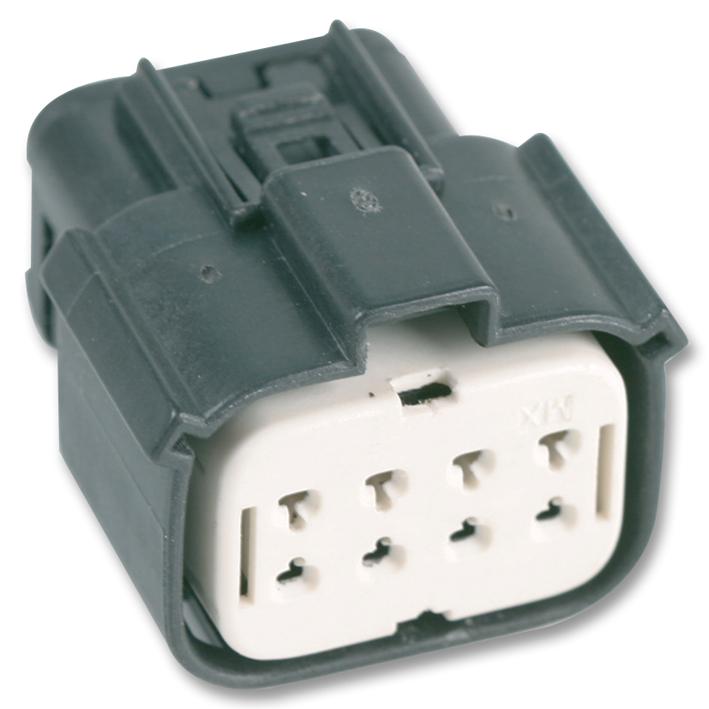

MOLEX 194180021 MX150L Sealed Connector
The MOLEX 19418-0021 is a robust, sealed receptacle within the MX150L Industrial Sealed Connector System. Designed for power and wire-to-board or wire-to-wire connections, this connector is rated IP67, providing excellent protection against dust and water ingress. It accommodates 14-16 AWG wire and features a polarized design for secure mating. While suitable for many industrial applications, it is not recommended for automotive applications with specific USCAR or Toyota Connector Spec requirements. The connector's robust construction and reliable performance make it ideal for demanding environments.
MOLEX 194180021 MX150L Sealed Connector Specifications:
- overview: MX150L Industrial Sealed Connector System
- application: Power, Wire-to-Board, Wire-to-Wire
- comments: IP67 rated; conforms to UL 1977. NOT suitable for automotive applications
- circuits_maximum: 6
- color_resin: Black
- flammability: 94V-0
- gender: Receptacle
- glow_wire_capable: No
- lock_to_mating_part: Yes
- net_weight_g: 17.667
- number_of_rows: 2
- packaging_type: Bag
- panel_mount: No
- pitch_mating_interface: 5.84mm
- polarized_to_mating_part: Yes
- stackable: No
- temperature_range_operating_c: -40° to +125°
- current_maximum_per_contact_a: 18.0
- eu_elv: Not Relevant
- eu_rohs: Not Reviewed
- reach_svhc: Not Contained
- halogen_free_status: Low-Halogen
- mates_with: 19419 Plug, 19429 Panel Mount Plug
- use_with: 19420 Female Crimp Terminal
