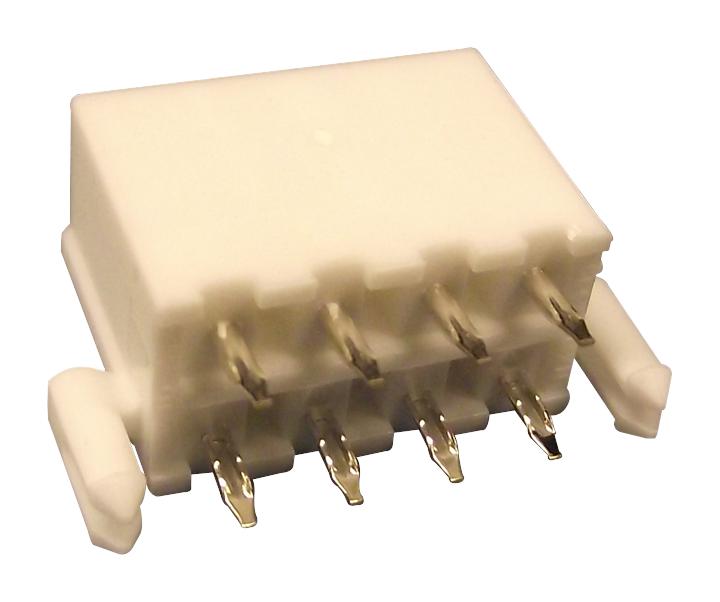

MOLEX 39299087 Power Connector
The Mini-Fit Jr. Power Connector is a versatile, vertical header with a 4.20mm pitch, dual row, 8 circuits, and snap-in plastic pegs for secure PCB locking. Designed for power applications, it supports 9.0A per contact and a maximum voltage of 600V, making it suitable for demanding industrial and electronic systems. The connector features a compact design with polarizations for proper mating, RoHS compliance, and a temperature range from -40°C to +105°C. Its through-hole termination ensures robust assembly and reliable electrical performance. Ideal for wire-to-board applications needing high current capacity and durable connections.
MOLEX 39299087 Power Connector Specifications:
- Pitch: 4.20mm
- Number of Circuits: 8
- Maximum Current per Contact: 9.0A
- Maximum Voltage: 600V
- Operating Temperature Range: -40°C to +105°C
- Material - Resin: Thermoplastic, natural color
- Plating - Mating and Termination: 0.889um tin
- Termination Interface: Through Hole
- PCB Thickness - Recommended: 1.60mm
- PCB Retention: Yes
- Color - Resin: Natural
- Package Type: Tray
- Mating Interface Pitch: 4.20mm
- Physical Orientation: Vertical
- Lock to Mating Part: Snap-in Plastic Peg
- Standards: RoHS Compliant, UL Listed, CSA Certified
Buy the Buy Molex Mini-Fit Jr. Power Connectors Part Number 0039299087 Online
Order the Molex Mini-Fit Jr. Power Connector online today for high-current applications. This rugged, RoHS-compliant connector features a 4.20mm pitch, 8 circuits, and a maximum of 9.0A per contact. Its through-hole termination ensures robust assembly, supporting a voltage of up to 600V. Suitable for power and industrial electronics, it operates reliably between -40°C and +105°C, with polarized and snap-in features for secure connections. Purchase now for durable, high-performance wiring solutions in your projects.
Get Molex Mini-Fit Jr. 0039299087 today—designed for power, durability, and reliable PCB connections in demanding electronic applications.
Frequently Asked Questions
Where can I buy MOLEX 39299087?
You can click on the BUY or RFQ button to purchase 39299087 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 39299087?
You can download the 39299087 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 39299087?
MOLEX
