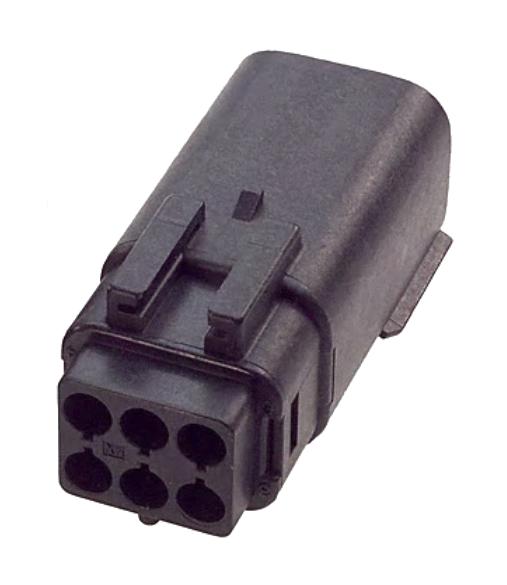

MOLEX 194190012 MX150L Industrial Connector
The MOLEX 19419-0012 is a robust industrial sealed connector from the MX150L series. This 6-circuit plug is designed for reliable power and wire-to-wire connections in demanding environments. It's suitable for applications requiring IP67 protection and conforms to UL 1977 standards. It is not suitable for automotive applications with specific USCAR or GMW requirements. The connector is RoHS compliant and features a lock to mating part for secure connections.
MOLEX 194190012 MX150L Industrial Connector Specifications:
- status: Active
- overview: MX150L Industrial Sealed Connector System
- description: MX150L 6 Circuit Plug for 18-22 AWG Wire
- agency_certification_csa: LR18689
- agency_certification_ul: E152602
- product_family: Crimp Housings
- series: 19419
- application: Power, Wire-to-Wire
- comments: IP67 rated; conforms to UL 1977
- circuits_maximum: 6
- flammability: 94V-0
- gender: Plug
- glow_wire_capable: No
- lock_to_mating_part: Yes
- net_weight_g: 15.460
- number_of_rows: 2
- packaging_type: Bag
- panel_mount: No
- pitch_mating_interface: 5.84mm
- polarized_to_mating_part: Yes
- stackable: No
- temperature_range_operating_c: -40° to +125°C
- current_maximum_per_contact_a: 18.0
- halogen_free_status: Low-Halogen
- upc: 822348005949
- mates_with: 19418 Receptacle Assemblies
- use_with: 19417 Male Crimp Terminals
