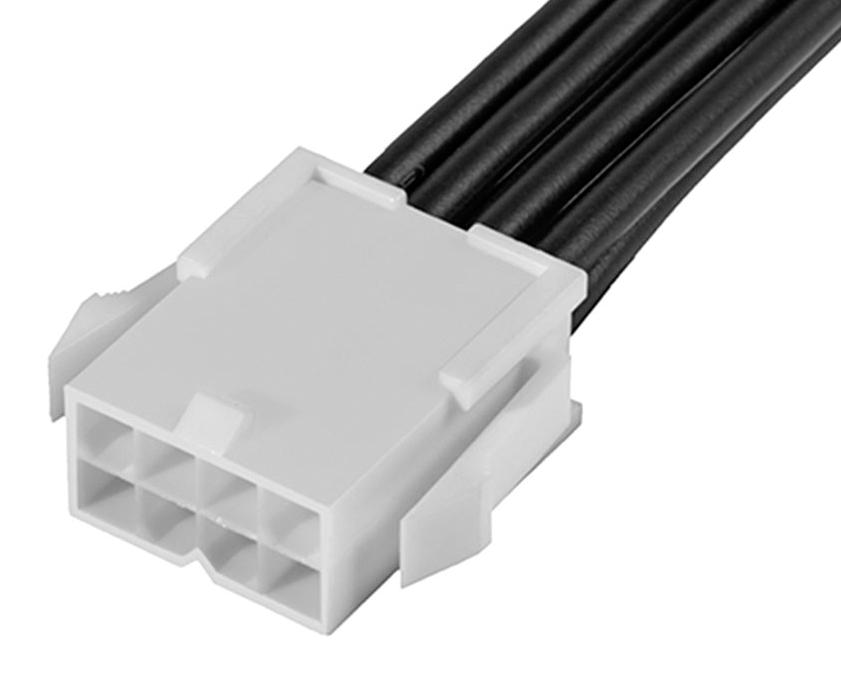

MOLEX 2153262083 Mini-Fit Jr. Cable Assembly
The MOLEX 2153262083 is a Mini-Fit Jr. female-to-pigtail cable assembly designed for power applications, including wire-to-board and wire-to-wire connections. This assembly features a dual-row configuration with 8 circuits, a 600mm length, and gold plating on the mating interface for enhanced conductivity and durability. Constructed with a brass metal body, nylon resin insulation, and tin-plated terminations, it ensures robust performance in various industrial settings. It is RoHS compliant and REACH SVHC substances are not contained.
MOLEX 2153262083 Mini-Fit Jr. Cable Assembly Specifications:
- overview: Mini-Fit Family Power Connectors
- application: Power, Wire-to-Board, Wire-to-Wire Assembly
- configuration: Single Ended
- connector_type: Mini-Fit Jr.-to-Pigtail
- cable_length: 600.00mm
- circuits_loaded: 8
- color_resin: Black
- gender: Female-Pigtail
- lock_to_mating_part: Yes
- material_metal: Brass
- material_plating_mating: Gold (Au)
- material_plating_termination: Tin
- material_resin: Nylon
- net_weight: 107.788/g
- number_of_rows: 2
- pitch_mating_interface: 4.20mm
- plating_min_mating: 0.762µm
- plating_min_termination: 0.762µm
- wire_insulation_diameter: 1.80-3.10mm
- wire_size_awg: 16
- wire_cable_type: UL 1015
- current_max_per_contact: 9.0A
- voltage_max: 600V
- upc: 193264590209
- mates_with: ['5559 Dual Row', '5566 Vertical with Pegs', '5566 Vertical without Pegs', '5569 Right Angle Dual Row with Flanges', '5569 Right Angle Dual Row with Pegs', '43810', '44068', '44281', '87427', '42404', '42440']
- drawing_number: 2153262081-000
