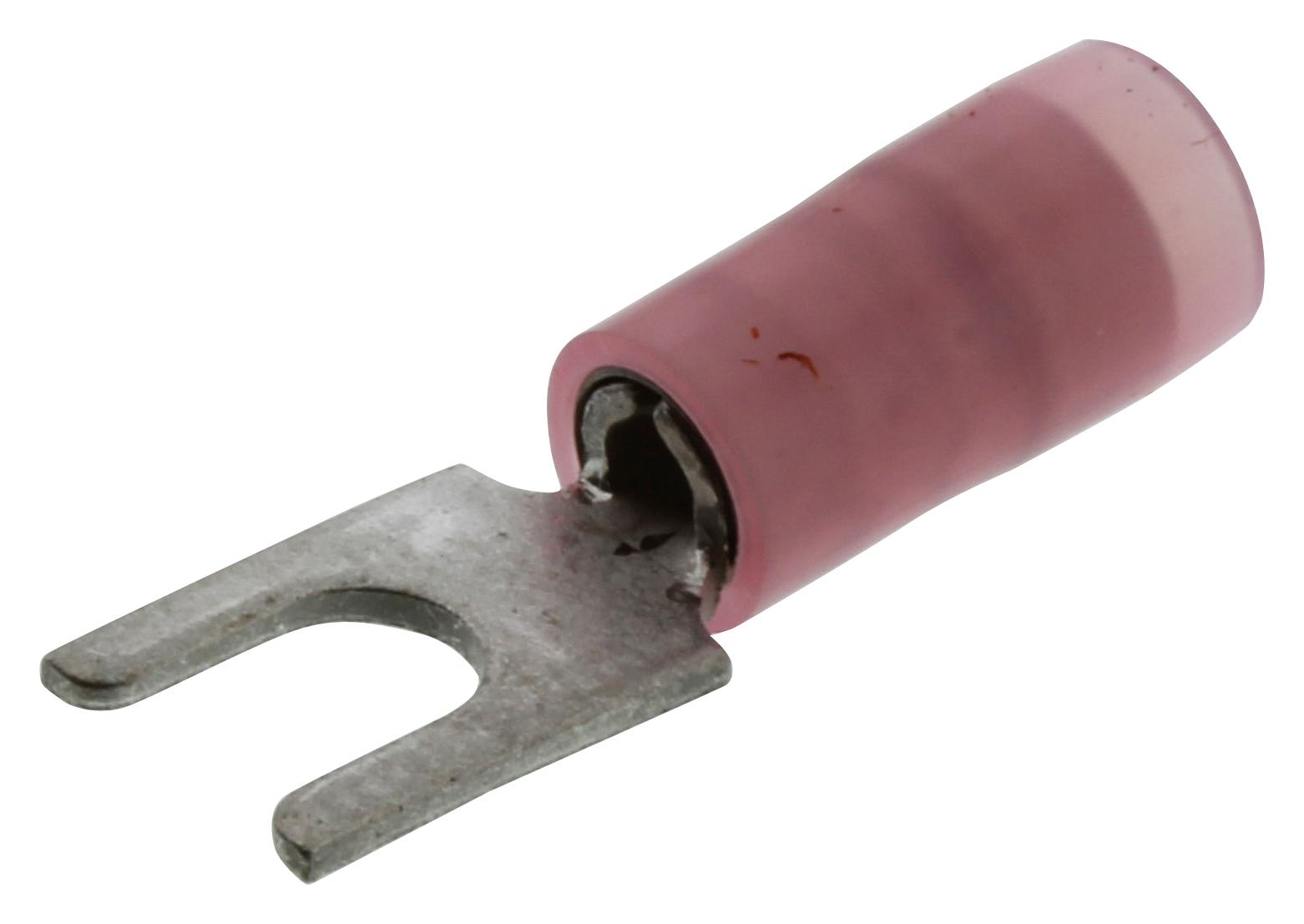

MOLEX 191390018 Avikrimp Block Spade Terminal
The MOLEX 19139-0018 Avikrimp Block Spade Terminal is a solderless termination solution for connecting wires to circuit boards or other terminals. Designed for 18-22 AWG wire, this terminal offers a secure and reliable connection with a stud size of 6 (M3.5). The nylon insulation provides excellent electrical insulation and durability, while the tin plating ensures good conductivity and corrosion resistance. Commonly used in automotive, industrial, and consumer electronics applications, the Avikrimp spade terminal simplifies assembly and reduces manufacturing costs.
MOLEX 191390018 Avikrimp Block Spade Terminal Specifications:
- Overview: Solderless Terminals
- Description: Avikrimp Block Spade Terminal for 18-22 AWG Wire, Stud Size 6 (M3.5), Width 6.22mm
- Product Family: Ring and Spade Terminals
- Series: 19139
- Type: Spade Block
- Wire Size AWG: 18, 20, 22
- Wire Size mm²: 0.25-1.50
- Voltage - Maximum: 600V
- Material - Plating Mating: Tin
- Insulation: Nylon (PA)
- Flammability: 94V-2
- Net Weight: 0.758/g
- Stud Size: 6 (M3.5)
- Wire Insulation Diameter: 3.56mm
- Barrel Type: Closed
- UPC: 800753102620
- Engineering Number: AA-838-06
- Agency Certification CSA: LR18689
- Agency Certification UL: E32244
- Mil-Spec: N/A
- Crimp Quality Equipment: Yes
- EU ELV: Not Relevant
- EU RoHS: Compliant
- REACH SVHC: Not Contained
- Halogen-Free Status: Low-Halogen
- China RoHS: Compliant
