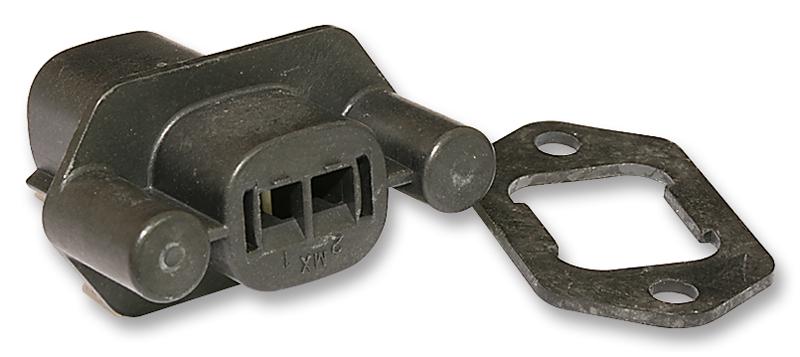

MOLEX 194290033 Industrial Sealed Connector
The MX150L industrial sealed connector system is designed for inside panel mount applications, offering IP67 protection and UL 1977 compliance. Featuring a 2 circuit panel mount plug suitable for 14-22 AWG wire, it includes a rear flange assembly with gasket in black color, ensuring durability and secure connection. This connector is ideal for industrial automation and control systems, providing reliable performance in harsh environments with a temperature range of -40°C to +125°C. Crafted from flame-retardant resin, it supports up to 18.0A per contact, with a 5.84mm pitch for precise mating.
MOLEX 194290033 Industrial Sealed Connector Specifications:
- Number of Circuits: 2
- Color: Black
- Flammability: 94V-0
- Temperature Range: -40°C to +125°C
- Current - Maximum per Contact: 18.0A
- Material: Flame-retardant resin
- Pitch - Mating Interface: 5.84mm
- Panel Mount: Yes
- IP Rating: IP67
- UL Certification: UL 1977
- Wire Range: 14-22 AWG
- Net Weight: 10.554 grams
- Lock to Mating Part: No
- Glow-Wire Capable: Yes
- Stackable: No
Buy the Molex Series MX150L Industrial Sealed Connector: 0194290033
Purchase the Molex Series MX150L industrial sealed connector online today for reliable panel mounting in harsh environments. With IP67 protection and UL certification, it offers 2 circuits for 14-22 AWG wire, supporting up to 18A per contact. Crafted from flame-retardant resin, it operates efficiently from -40°C to +125°C. Suitable for automation, control systems, and industrial applications, this connector guarantees durability, safety, and easy installation for demanding projects. Get yours now for top-quality connectivity.
Order your Molex Series MX150L 0194290033 today and ensure your industrial projects are equipped with durable, sealed panel mount connectors for reliable performance.
