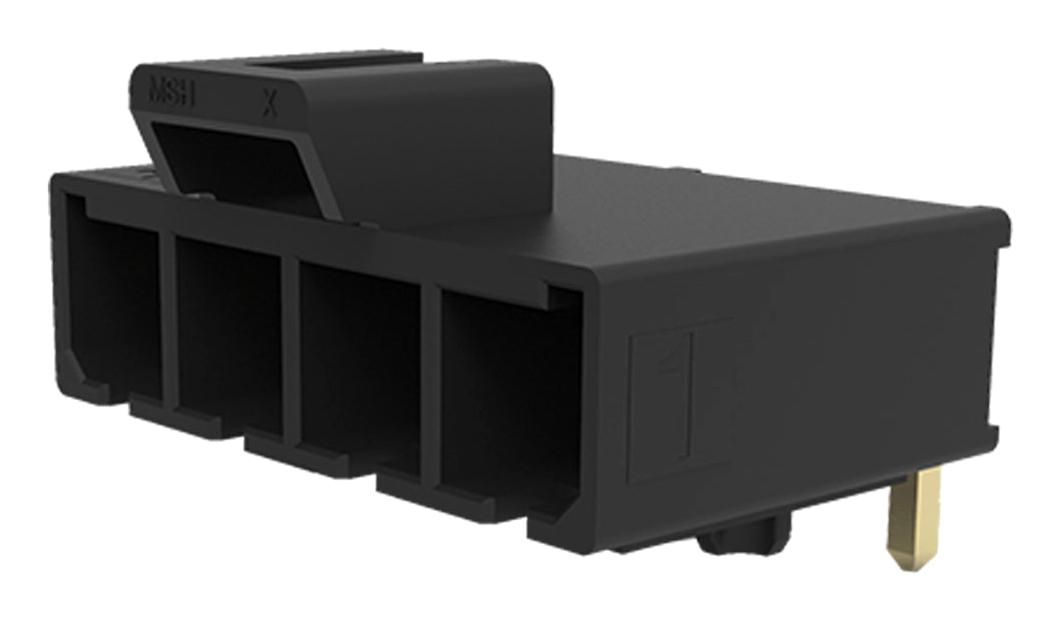

MOLEX 2002411217 Power Connector
The MOLEX Mega-Fit Power Connector is designed for high-power applications, delivering 25.0A per circuit with fully protected header pins and receptacle terminals. It offers unique keying options to ensure proper mating and features sacrificial contacts for safe hot plugging. The connector's power-dense design and tight pitch provide more power per linear millimeter than other mid-range power products. It also includes features like polarization pegs, crush peg removal, and a new latch design for superior retention and low-mating force. Applications include home appliances, telecommunication equipment, industrial machinery, and commercial vehicles.
MOLEX 2002411217 Power Connector Specifications:
- Pitch: 5.70mm
- Current (max): 25.0A
- Voltage (max): 600V
- Contact Resistance: 6 milliohms
- Dielectric Withstanding Voltage: No Breakdown
- Insulation Resistance (min): 1,000 Megohms
- Contact Insertion Force (max): 6.8N
- Contact Retention to Housing: 30N
- Insertion Force to PCB (max): 85N
- Mating Force (Tin plated max): 6.8N
- Mating Force (Gold plated max): 6.0N
- Unmating Force (Tin plated max): 6.5N
- Unmating Force (Gold plated max): 5.6N
- Durability (min): 2 Megohms
- Housing Material: UL 94 V-0
- Contact Plating (Contact Area): Gold (Au) 0.38 or 0.76µ (15 or 30µ")
- Contact Plating (Solder Tail Area): Tin (Sn)
- Underplating: Nickel (Ni)
- Operating Temperature: -40 to +150°C
- Packaging: Bag, Reel, Tray
- UL File No.: E29179
- CSA File No.: LR-19980_A_000
- Mates With: Mega-Fit Receptacles, Plugs
- Terminal Used: Series 172063, 076823, 105418, 105417
- Designed In: Millimeters
- Halogen Free: Yes or No
