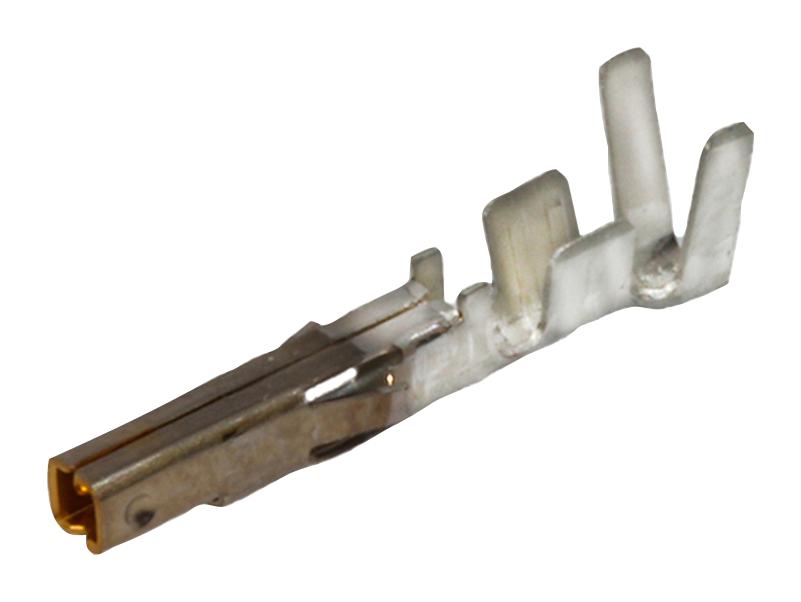

MOLEX 39000140 Power Crimp Terminal
The Mini-Fit Female Crimp Terminal with selective gold and tin plating over nickel provides reliable electrical connections for power applications. Designed for 22-28 AWG wires, it features a crimp or compression termination style, ensuring secure and durable connections. This component supports up to 9.0A current and a maximum voltage of 600V. With a net weight of 115.701 mg, it is suitable for wire-to-board and wire-to-wire applications, compatible with mini-fit jr series connectors, and offers high durability with multiple mating cycles. RoHS compliant and halogen-free, it is ideal for various industrial and electronic power systems.
MOLEX 39000140 Power Crimp Terminal Specifications:
- Wire size: 22-28 AWG
- Wire insulation diameter: 0.90-1.80 mm
- Material - Metal: Brass
- Material - Plating Mating: Gold
- Material - Plating Termination: Tin
- Current - Maximum per Contact: 9.0A
- Voltage - Maximum: 600V
- Durability (mating cycles max): Not specified
- Net Weight: 115.701 mg
- Packaging Type: Bag
- Termination Interface: Crimp or Compression
- Application: Power, Wire-to-Board, Wire-to-Wire
- Gender: Female
Buy the Molex Series 5556 Mini-Fit Female Crimp Terminal: 39000140
Purchase the Molex 39000140 Mini-Fit Female Crimp Terminal online today to ensure reliable power connections for your electronic and industrial projects. Designed for 22-28 AWG wires with gold and tin plating, it offers excellent conductivity and corrosion resistance. Supports up to 9A current and 600V voltage for safe, high-performance applications. Its crimp or compression termination guarantees secure, stable contact points, ideal for wire-to-board and wire-to-wire setups. RoHS compliant and halogen-free, ensuring safety and environmental standards are met for versatile industrial use.
Get Molex 39000140 today—built for secure connections and long-lasting durability in power and electronic wiring systems.
Frequently Asked Questions
Where can I buy MOLEX 39000140?
You can click on the BUY or RFQ button to purchase 39000140 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 39000140?
You can download the 39000140 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 39000140?
MOLEX
