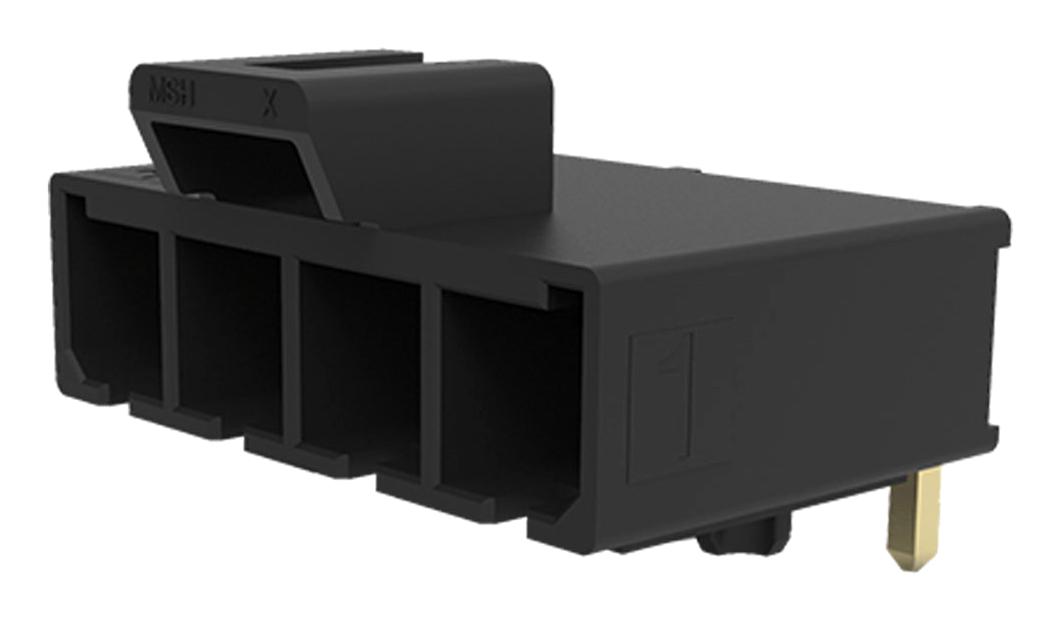

MOLEX 2002411218 Power Connector Family
MOLEX Mega-Fit Power Connectors are designed for high-current applications, delivering up to 25.0A per circuit. These connectors feature tin-plated contacts, positive locking housings, and sacrificial contacts for safe “hot plugging.” Their power-dense design and unique keying options ensure efficient power delivery and proper mating. Applications include home appliances, telecommunication equipment, industrial machinery, and commercial vehicles.
Authorized Distributors
Source:Mouser Electronics
Part No:200241-1218
Stock:266
Inv Date:05-30-2026
Price: Unit price: $5.13
Buy/RFQ:
Source:Master Electronics
Part No:200241-1218
Stock:0
Inv Date:05-29-2026
Price: Unit price: $2.79
Buy/RFQ:
Source:Onlinecomponents.com
Part No:200241-1218
Stock:0
Inv Date:05-29-2026
Price: Unit price: $2.79
Buy/RFQ:
MOLEX 2002411218 Power Connector Family Specifications:
- Packaging: Bag, Reel, Tray
- UL File No.: E29179
- CSA File No.: LR-19980_A_000
- Mates With: Mega-Fit Receptacles, Plugs
- Use With: Mega-Fit Receptacles, Plugs
- Terminal Used: Series 172063, 076823, 105418, 105417
- Designed In: Millimeters
- RoHS: Yes, Compliant
- Materials: Halogen Free: Yes or No
- Glow Wire Capable: Yes
- Voltage (max.): 600V
- Current (max.): 25.0A
- Contact Resistance: 6 milliohms
- Dielectric Withstanding Voltage: No Breakdown
- Current leakage: <5mA
- Insulation Resistance (min.): 1,000 Megohms
- Contact Insertion Force (max.): 6.8N
- Contact Retention to Housing: 30N
- Insertion Force to PCB (max.): 85N
- Mating Force (Tin plated max.): 6.8N initial mating force per circuit
- Mating Force (Gold plated max.): 6.0N per circuit
- Unmating Force (Tin plated max.): 6.5N initial unmating force per circuit
- Unmating Force (Gold plated max.): 5.6N per circuit
- Durability (min.): Maximum change from initial: Tin: 2 Megohms; Gold: 2 Megohms
- Header Pin Retention Force in Housing: 89N min per pin
- Housing: UL 94 V-0, Glow Wire
- Contact Plating (Contact Area): Gold (Au) 0.38 or 0.76µ (15 or 30µ”) options or Tin (Sn)
- Contact Plating (Solder Tail Area): Tin (Sn) Underplating — Nickel (Ni)
- PCB Thickness: 1.60 and 2.40mm (.062 and .093”)
- Operating Temperature: -40 to +150°C
