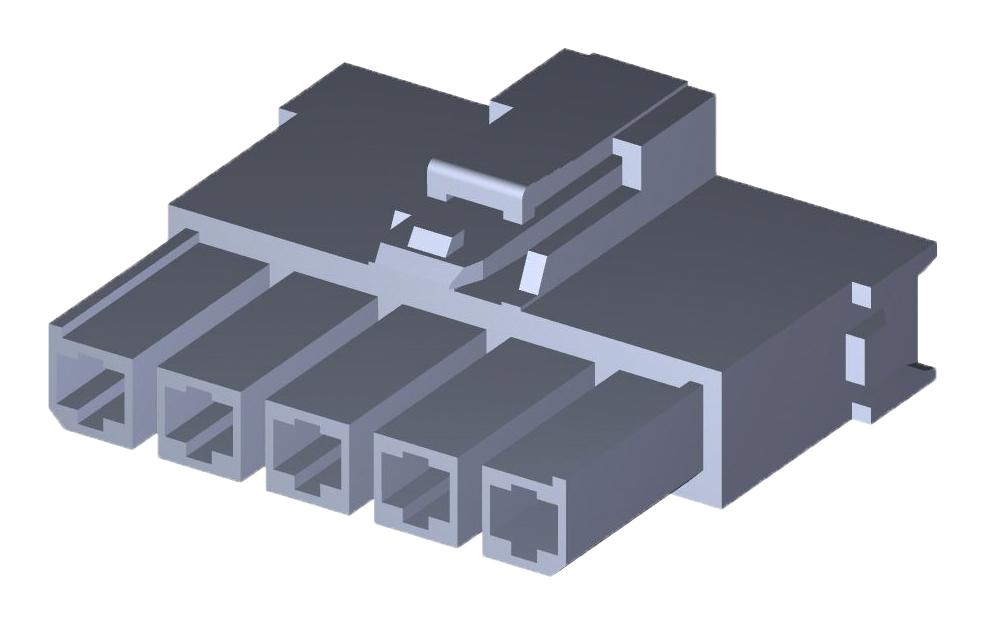

MOLEX 2004561215 Power Connector
The Mega-Fit TPA-Capable Receptacle Housing is a single-row, 5-circuit power connector made from durable nylon resin, offering UL 94V-0 flame resistance. It is glow-wire capable, UL listed, and designed for power and wire-to-board applications. The black housing features a lock to mating part, is polarized to ensure correct orientation, and operates within a temperature range of -40°C to +105°C. It facilitates reliable connections with a pitch of 5.70mm, suitable for versatile electronic power systems and compatible with Mega-Fit header and crimp terminals.
MOLEX 2004561215 Power Connector Specifications:
- Circuits (maximum): 5
- Color: Black
- Material: Nylon resin
- Glow-Wire Capable: Yes
- Lock to Mating Part: Yes
- Temperature Range: -40°C to +105°C
- Pitch - Mating Interface: 5.70mm
- Pitch - Termination Interface: 5.70mm
- Gender: Receptacle
- Reference Drawing Number: 2004561000-001
- RoHS, China RoHS, REACH SVHC compliant
- UL 94V-0 flame-retardant housing, not low-halogen
- Net Weight: 3.260 g
Buy the Molex Series Mega-Fit Power Connector: 2004561215
Enhance your electronic power systems with the Molex Mega-Fit Power Connector. Designed for power and wire-to-board applications, it features a durable nylon housing, UL certification, and glow-wire capability. With a 5.70mm pitch, it ensures secure and reliable connections in various environments. Suitable for use with compatible headers and crimp terminals, this 5-circuit receptacle offers excellent electrical and mechanical performance, operating efficiently from -40°C to +105°C, making it ideal for demanding industrial and consumer electronics applications.
Get Molex Mega-Fit 2004561215 today—built for power, reliability, and long-lasting durability.
Frequently Asked Questions
Where can I buy MOLEX 2004561215?
You can click on the BUY or RFQ button to purchase 2004561215 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2004561215?
You can download the 2004561215 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2004561215?
MOLEX
