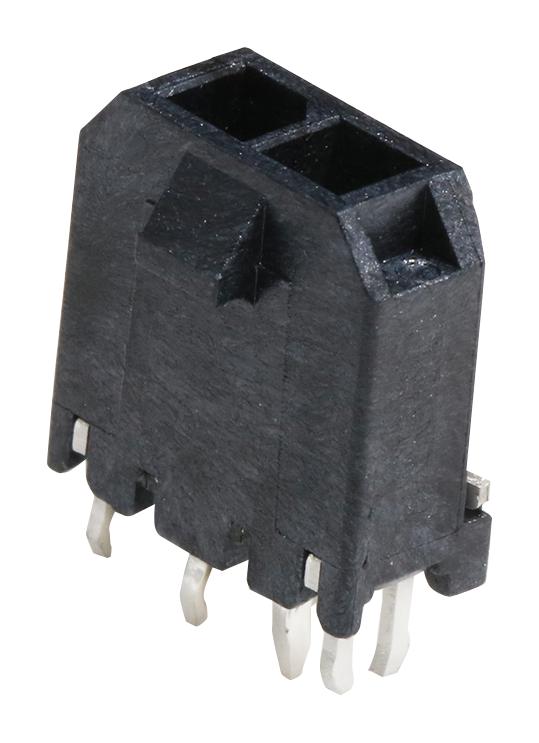

MOLEX 436500219 Power Header
The Micro-Fit 3.0 Vertical Header features a 3.00mm pitch and accommodates 2 circuits with PCB press-fit connection, glow-wire capability, and high-temperature thermoplastic material, ensuring safety and durability. Designed for power and wire-to-board applications, it is CSA and UL certified, with a maximum current of 8.5A and voltage of 600V. It offers a reliable, shrouded, through-hole mounting solution with a maximum of 30 mating cycles, suitable for high-performance electrical systems needing robust, efficient connectors.
MOLEX 436500219 Power Header Specifications:
- Pitch: 3.00mm
- Circuits (loaded): 2
- Circuits (maximum): 2
- Color - Resin: Black
- Durability (mating cycles max): 30
- Flammability: UL 94V-0
- Glow-Wire Capable: Yes
- Mated Height: 17.27mm
- Material - Metal: Brass
- Material - Plating Mating: Gold
- Material - Plating Termination: Tin
- Material - Resin: High Temperature Thermoplastic
- Net Weight: 0.553g
- Number of Rows: 1
- Orientation: Vertical
- PCB Locator: Yes
- PCB Retention: Yes
- PCB Thickness - Recommended: 1.60mm
- Temperature Range - Operating: -40°C to +105°C
- Termination Interface: Style: Through Hole - Kinked Pin
- Current - Maximum per Contact: 8.5A
- Voltage - Maximum: 600V
- Process Temperature max.: 260°C
- Lead-free Process Capability: Yes
- Max. Cycles at Max. Process Temp.: 30
- Packaging: Tray
Buy the Molex Series 436500219 Power Header 3.0mm Pitch: Reliable Wire-to-Board Connection
Secure your projects with the Molex Micro-Fit 3.0 Power Header. Designed for power and wire-to-board applications, this reliable connector features a 3.00mm pitch, glow-wire capability, and high-temperature thermoplastic construction. Certified by UL and CSA, it offers a maximum current rating of 8.5A at 600V, with a durable up to 30 mating cycles. Its through-hole design with kinked pins ensures secure mounting, making it ideal for high-performance electrical systems requiring robustness, safety, and efficiency.
Order your Molex Series43650 3.0mm Power Header today and ensure your electrical systems are equipped with dependable, high-quality connectors.
Frequently Asked Questions
Where can I buy MOLEX 436500219?
You can click on the BUY or RFQ button to purchase 436500219 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 436500219?
You can download the 436500219 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 436500219?
MOLEX
