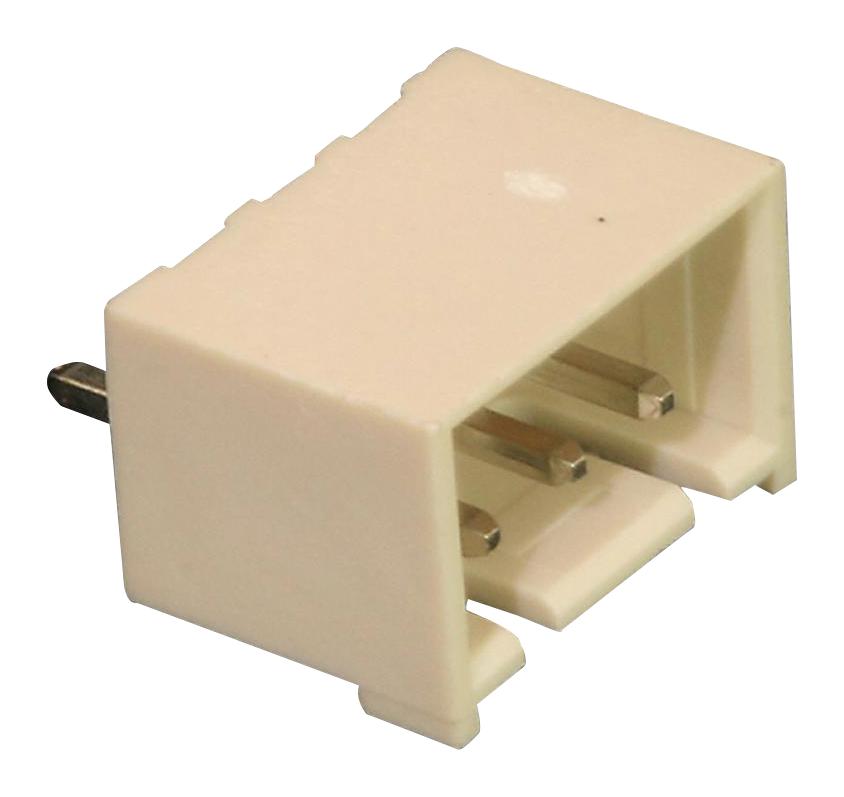

MOLEX 353120260 Header Vertical Shrouded
The MOLEX 35312-0260 is a robust vertical header designed for reliable signal transmission in wire-to-board applications. Its shrouded design and positive lock mechanism ensure a secure and stable connection, minimizing the risk of disengagement. Constructed from PA Polyamide (Nylon) 6/6, this header offers excellent durability and resistance to environmental factors. It is suitable for a wide range of industrial applications requiring a dependable and compact connector solution.
MOLEX 353120260 Header Vertical Shrouded Specifications:
- product_family: PCB Headers
- series: 35312
- application: Signal, Wire-to-Board
- circuits_loaded: 2
- circuits_maximum: 2
- color_resin: Natural
- durability_mating_cycles: 30
- first_mate_last_break: No
- flammability: 94V-0
- glow_wire_capable: No
- keying_to_mating_part: None
- lock_to_mating_part: Yes
- material_plating_mating: Tin
- material_plating_termination: Tin
- material_resin: Nylon
- number_of_rows: 1
- orientation: Vertical
- pc_tail_length: 3.40mm
- pcb_locator: No
- pcb_retention: None
- pcb_thickness_recommended: 1.60mm
- packaging_type: Bag
- pitch_mating_interface: 2.50mm
- pitch_termination_interface: 2.50mm
- plating_min_mating: 5.080µm
- plating_min_termination: 5.080µm
- polarized_to_pcb: No
- shrouded: Partial
- stackable: No
- surface_mount_compatible: No
- temperature_range_operating: -40° to +105°C
- termination_interface_style: Through Hole
- current_maximum_per_contact: 3.0A
- voltage_maximum: 250V
- upc: 822348778270
- net_weight: 0.275/g
