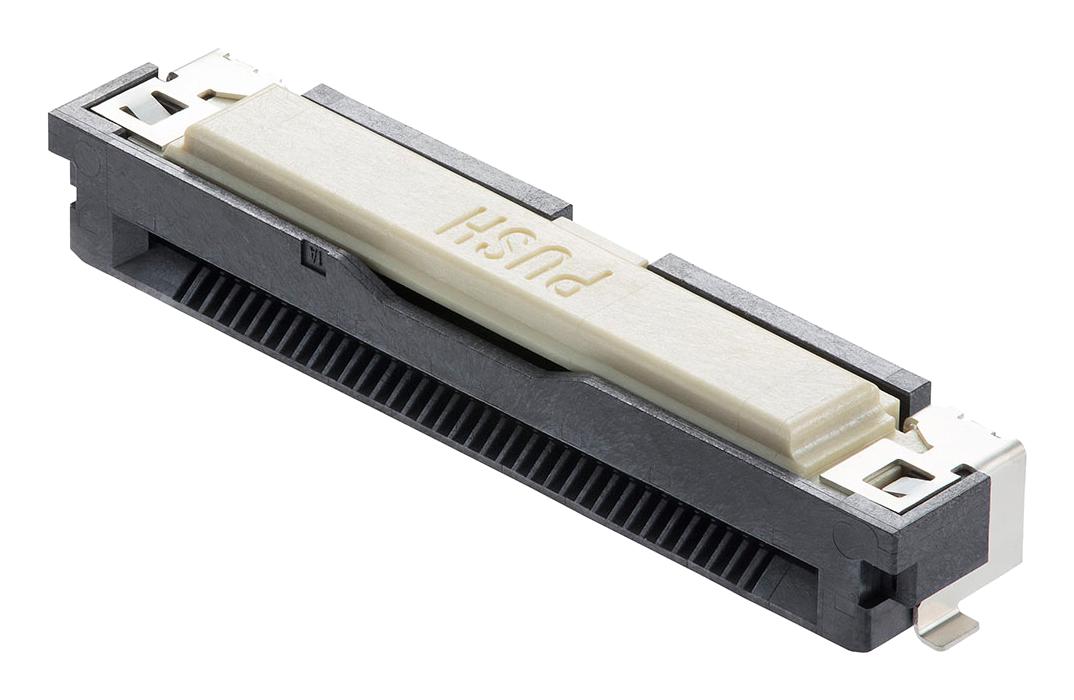

MOLEX 2004850440 FFC/FPC Connector
The 200485 series easy-On FFC/FPC one-touch connectors feature a right-angle design with a single-step mating process and an auto lock-nail mechanism that ensures high retention force for quick, reliable connections. These connectors accommodate a wide FFC/FPC mouth, facilitate easy operation, and include a visible release button for quick cable removal. Constructed with durable LCP housing, gold-plated signal terminals, and copper alloy contacts, they operate from -40°C to +105°C, supporting a maximum voltage of 50V and current of 0.5A. Suitable for automation, consumer electronics, and industrial applications, they support over 20 mating cycles and are UL94V-0 certified.
MOLEX 2004850440 FFC/FPC Connector Specifications:
- Pitch - Mating Interface: 0.50mm
- Number of Circuits: 40
- Mated Height: 446mm
- Operating Temperature Range: -40°C to +105°C
- Current per Contact: 0.5A
- Voltage Maximum: 50V
- Material - Metal: Copper Alloy
- Material - Plating Mating: Gold
- Material - Resin: Liquid Crystal Polymer
- Durability (mating cycles max): 20
- Color - Resin: Not specified
- PCB Mounting: Surface Mount
- Packaging Type: Embossed Tape on Reel
- Actuator Type: Auto Lock-Nail Mechanism
- Circuit (Loaded): 40
- Circuit (Maximum): 40
- Mating Operation: Single-step, auto-lock
- Certification: UL94V-0
- RoHS Compliance: Yes
- Operating Environment: Suitable for industrial and consumer electronics
Buy the Molex Series 200485 FFC Connector: 2004850440
Purchase the Molex 2004850440 FFC/FPC connector online today for your electronic assembly needs. Designed with a right-angle, auto-lock mechanism, and gold-plated contacts, this high-quality connector ensures quick and secure connections suitable for automation, consumer electronics, and industrial applications. Its durability with over 20 mating cycles and wide operating temperature range of -40°C to +105°C make it ideal for various environments. Experience reliable performance, easy operation, and RF-optimized signal integrity with simple cable removal and UL94V-0 certification, all available for convenient online purchase.
Buy Molex 2004850440 now and experience quick, reliable, and secure FFC/FPC connections with auto-lock technology and high retention force.
Frequently Asked Questions
Where can I buy MOLEX 2004850440?
You can click on the BUY or RFQ button to purchase 2004850440 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2004850440?
You can download the 2004850440 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2004850440?
MOLEX
