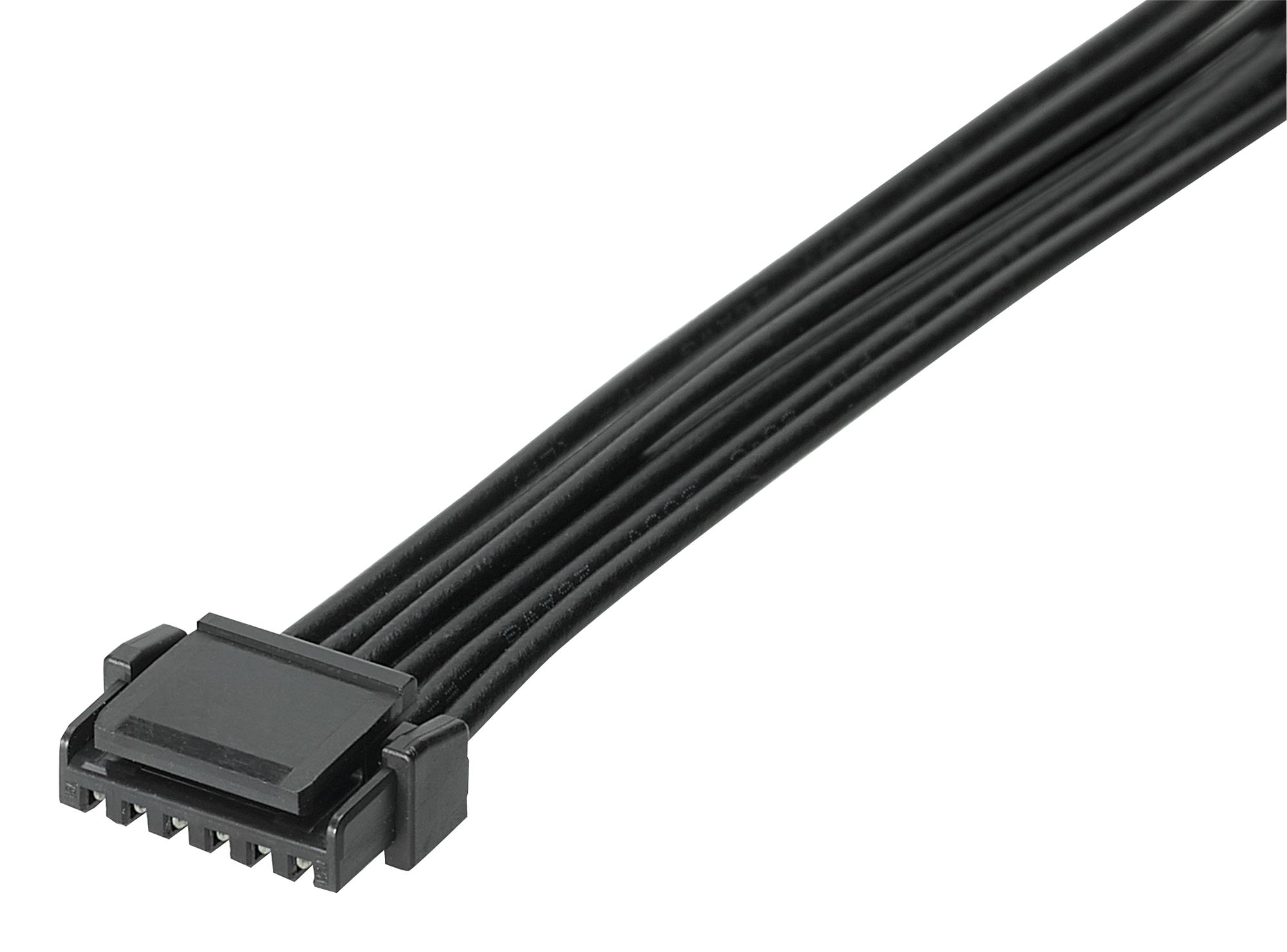

MOLEX 451110603 Micro-Lock Connector
The Micro-Lock PLUS-to-Micro-Lock PLUS Off-the-Shelf Cable Assembly features a 1.25mm pitch and single row configuration, with a length of 300mm and six circuits. Designed with a black resin housing, it provides reliable connector-to-connector connections suitable for wire-to-board applications. The assembly uses copper alloy contacts with tin plating for excellent conductivity and corrosion resistance. It supports a maximum voltage of 50V AC/DC and is compliant with RoHS standards, making it ideal for compact, high-quality electronic systems requiring secure, easy-to-mate connectors.
MOLEX 451110603 Micro-Lock Connector Specifications:
- Series: 45111
- Assembly Configuration: Connector to Connector
- Cable Length: 300mm
- Circuits: 6
- Color - Resin: Black
- Gender: Female-Female
- Lock to Mating Part: Yes
- Material - Metal: Copper Alloy
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Material - Resin: Polyester
- Net Weight: 4.736g
- Packaging Type: Bag
- Pitch - Mating Interface: 1.25mm
- Termination Interface Style: Crimp or Compression
- Wire Insulation Diameter: 0.98mm
- Wire Size AWG: 26
- Wire/Cable Type: compatible with UL 1061
- Voltage - Maximum: 50V AC/DC
- RoHS Compliance: Yes
Buy the Molex 0451110603 – Reliable Micro-Lock Connector for Industrial Applications
Enhance your electronic assemblies with the reliable Micro-Lock Connector series. Designed for secure, easy-to-mate connections, these assemblies with a 1.25mm pitch support six circuits over 300mm lengths. Made from durable materials, with tin-plated copper alloy contacts, they ensure excellent conductivity and corrosion resistance. Suitable for various industrial, automation, and electronic applications, these RoHS-compliant connectors support up to 50V AC/DC, offering a perfect balance of performance, reliability, and environmental compliance. Purchase online today for fast delivery!
Order your Molex Series 45111 0451110603 today and give your electrical projects the dependable quality they deserve with high-performance connectors.
Frequently Asked Questions
Where can I buy MOLEX 451110603?
You can click on the BUY or RFQ button to purchase 451110603 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 451110603?
You can download the 451110603 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 451110603?
MOLEX
