MOLEX 2183971054 Datasheet & Stock

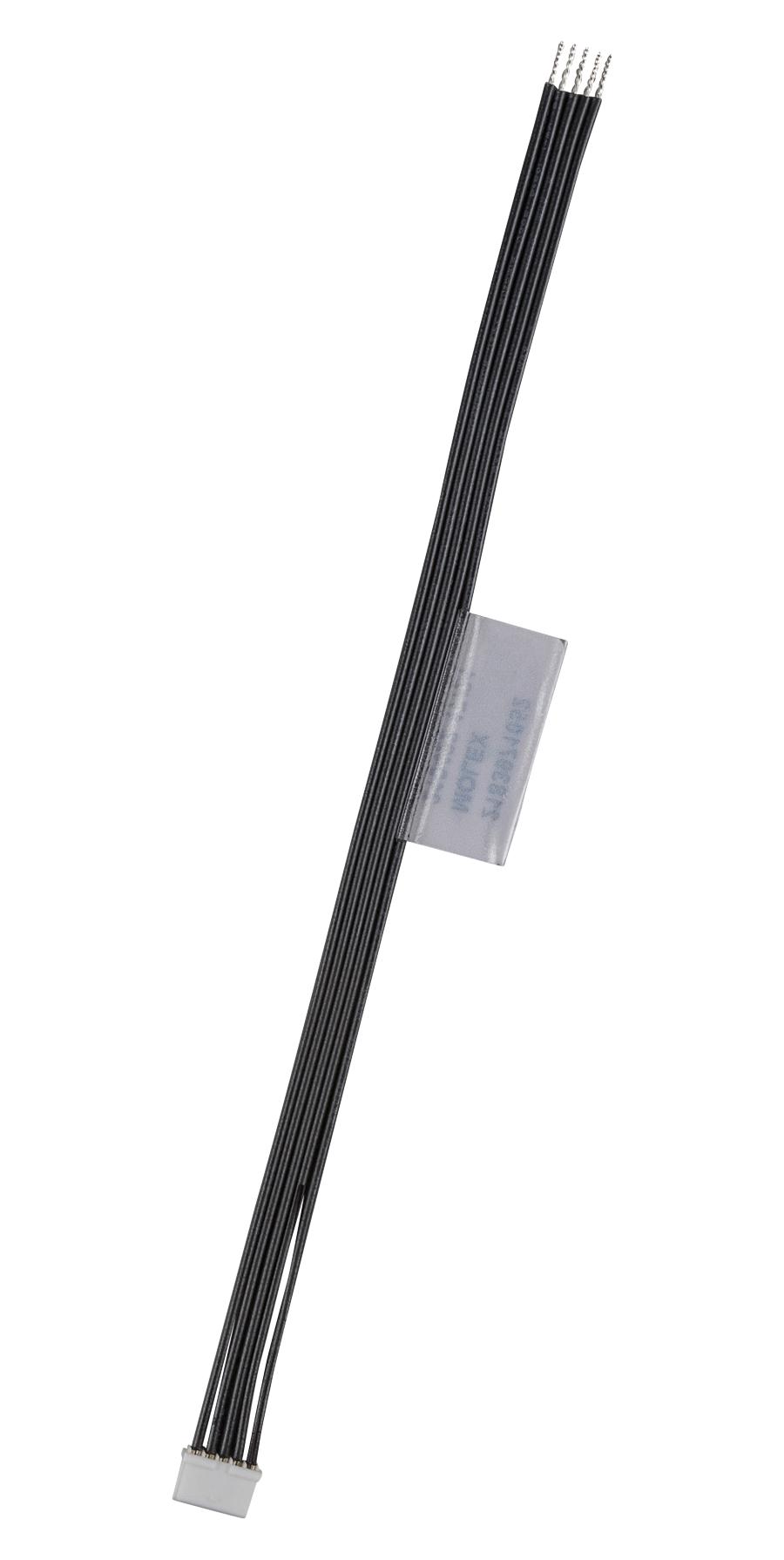

The Pico-Spox 1.5 mm tin (Sn) discrete wire cable assembly is an off-the-shelf (OTS) product designed for prototyping and preproduction applications worldwide. It features a 1.5 mm pitch connector with a vertical and right-angle single-row header equipped with a friction lock, providing secure latch protection and terminal retention. The assembly utilizes popular terminals compatible with widely available crimp applicators, ensuring ease of assembly. Its compact design offers approximately 30% space savings over traditional 2 mm wire-to-board connectors. The assembly is suitable for use in consumer electronics, industrial automation, and medical technology (MedTech) applications. Certified by UL and CSA, the product supports a maximum voltage of 250VAC and a maximum current of 2.5A per contact. It uses 24 AWG UL 10002 standard wire, housed in durable nylon with phosphor bronze contacts plated in tin, and is rated for up to 10 mating cycles. Operating temperature ranges from -10°C to +105°C.
Frequently Asked Questions
Where can I buy MOLEX 2183971054?
You can click on the BUY or RFQ button to purchase 2183971054 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2183971054?
You can download the 2183971054 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2183971054?
MOLEX
