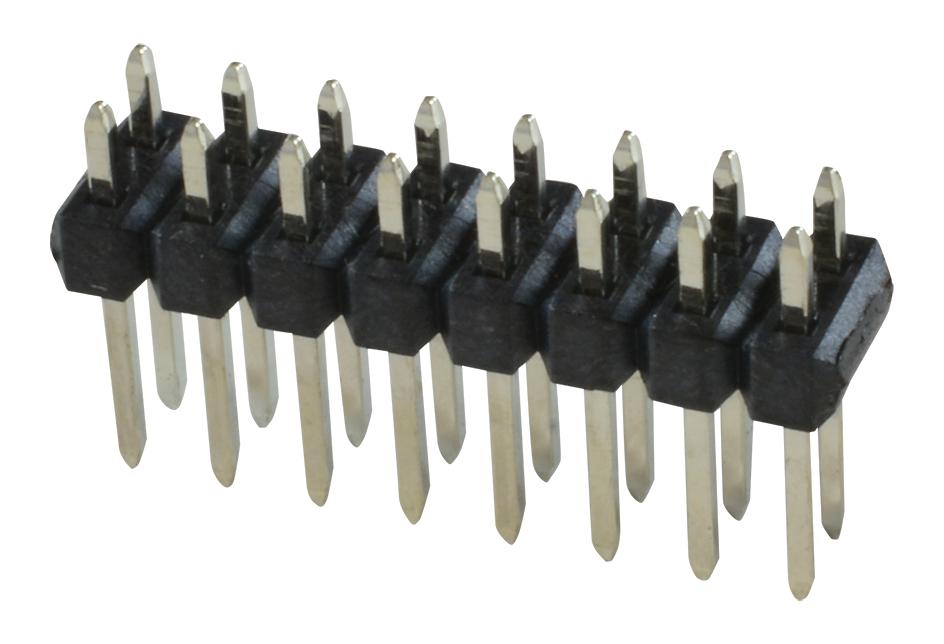

MOLEX 10897401 C-Grid Header
The 2.54mm Pitch C-Grid Breakaway Header is a high-temperature, dual-row, vertical connector suitable for board-to-board applications. Made of copper alloy with tin plating, it features 40 circuits, a 2.72mm PC tail length, and can withstand temperatures from -40°C to +105°C. It has a max current of 3A per contact and voltage up to 250V. This shrouded, stackable connector is RoHS compliant, durable for numerous mating cycles, and designed for reliable signal connections in electronic systems.
MOLEX 10897401 C-Grid Header Specifications:
- Pitch: 2.54mm
- Number of Circuits: 40
- Circuits (Maximum): 40
- Color - Resin: Not specified
- Material - Metal: Copper Alloy
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Material - Resin: High Temperature Thermoplastic
- Net Weight: 2.629 grams
- Number of Rows: 2
- Orientation: Vertical
- PC Tail Length: 2.72mm
- PCB Thickness - Recommended: 1.60mm
- Operating Temperature Range: -40°C to +105°C
- Current per Contact: 3A
- Voltage: 250V
- Process Temperature Max.: Not specified
- Process Capability: Lead-free
- Stackable: Yes
- Shrouded: Yes
- RoHS Compliant: Yes
- Halogen-Free: Yes
- UL Certification: Yes
- CSA Certification: Yes
Buy the Buy Molex C-Grid Breakaway Header Part Number 10897401 Online
Purchase the Molex C-Grid Header 10897401 online for its reliable high-temperature performance, robust construction, and secure signal connectivity. This 40-circuit, dual-row, vertical connector features tin plating for corrosion resistance, stackability for flexible configurations, and RoHS compliance for environmental safety. Designed for board-to-board applications, it offers a maximum current of 3A per contact and voltage up to 250V. Ideal for electronics requiring durable, high-quality connectors, this part ensures long-lasting performance and easy installation in various industrial and consumer devices.
Get Molex 10897401 today—built for high-temperature reliability and durable signal connections in electronic systems.
Frequently Asked Questions
Where can I buy MOLEX 10897401?
You can click on the BUY or RFQ button to purchase 10897401 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 10897401?
You can download the 10897401 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 10897401?
MOLEX
