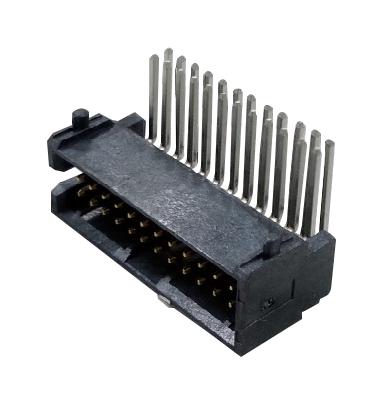

MOLEX 2010212024 Board-to-Board Connector
The Slim-Grid Header is a reliable, through-hole, right-angle connector with 24 circuits, featuring 0.05 micron gold plating for enhanced corrosion resistance. Designed for board-to-board applications, it supports currents up to 1.4A per contact and operates within a temperature range of -55°C to +105°C. Made from liquid crystal polymer with copper alloy contacts, it offers durability for multiple mating cycles, and is RoHS, ELV, and halogen-free compliant, ensuring environmentally friendly operation. Its 4.00mm tail length and shrouded design facilitate secure PCB connections in compact electronic assemblies.
MOLEX 2010212024 Board-to-Board Connector Specifications:
- Circuits: 24
- Contact Material: Copper Alloy
- Plating: 0.05 um Gold (Au), Matte Tin
- Tail Length: 4.00mm
- Temperature Range: -55°C to +105°C
- Current Rating: 1.4A per contact
- Voltage Rating: 125V AC
- Connector Orientation: Right Angle
- Mounting Type: Through Hole
- Material - Resin: Liquid Crystal Polymer
- Net Weight: 0.899g
- Maximum Durability: Specified for multiple mating cycles
- RoHS, ELV, Halogen-Free, REACH SVHC compliant
Buy the Molex 2010212024 – Reliable Board-to-Board Connectors for Industrial Applications
Purchase the Molex Series2010212024 Board-to-Board Connector online today to enhance your electronic assemblies with a durable, high-quality, environmentally compliant connection solution. Featuring 24 circuits, 0.05 micron gold plating, and a robust through-hole right-angle design, this connector supports up to 1.4A per contact and operates across a wide temperature range from -55°C to +105°C. Its 4.00mm tail length and shrouded construction provide secure attachment and alignment in compact, demanding industrial applications, ensuring reliable long-term performance and easy integration into your projects.
Order your Molex Series2010212024 high-quality board-to-board connector today and ensure secure, reliable connections for your electronic projects.
Frequently Asked Questions
Where can I buy MOLEX 2010212024?
You can click on the BUY or RFQ button to purchase 2010212024 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2010212024?
You can download the 2010212024 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2010212024?
MOLEX
