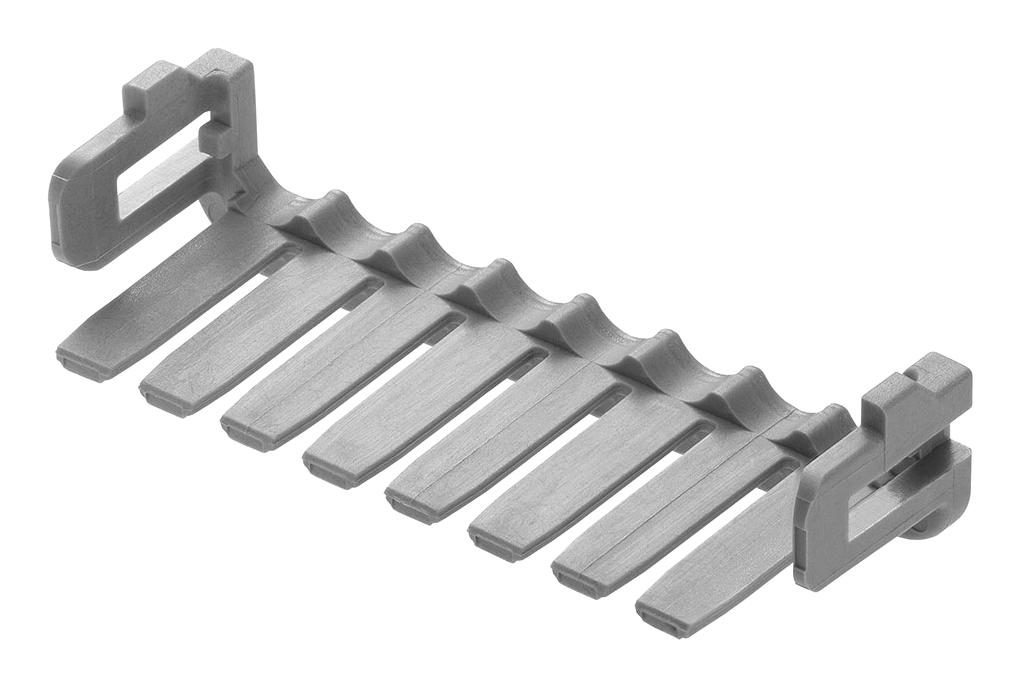

MOLEX 2127252080 Terminal Locking Retainer
The 212725 series is a 2.00mm pitch Micro-One terminal position assurance retainer designed to securely lock terminals in place. Made from durable grey polyamide resin, it is glow wire capable and intended for use with the Micro-One receptacle housing. The TPA ensures proper connection and features a lock to the mating part. It operates from -40°C to +105°C, is UL certified, and is suitable for reliable wire-to-board connections in industrial electronics, automation, and manufacturing applications, providing secure terminal locking and easy assembly.
MOLEX 2127252080 Terminal Locking Retainer Specifications:
- Circuits (Loaded): 8
- Maximum Circuits: 8
- Color - Resin: Gray
- Material - Resin: Polyamide
- Operating Temperature Range: -40°C to +105°C
- Lock to Mating Part: Yes
- Part Number: 2127252080
- Series: 212725
- Application: Micro-One Wire-to-Board Connector System
- Certification: UL E29179 compliant
- Glow wire capability: Yes
- Net Weight: 115.280 mg
- Packaging Type: Bag
- Reference Drawing Numbers: 2059790000-AS-000, 2127259200-SPK-200
Buy the Molex 212725 Series U–2013 Reliable Terminal Locking Retainer for Industrial Applications
Secure your wire-to-board connections with the Molex Terminal Locking Retainer from the 212725 series, designed for 2.00mm pitch Micro-One systems. Made from durable polyamide resin, it offers glow wire capability, UL certification, and operates in a temperature range of -40°C to +105°C. This retainer ensures terminals stay locked in place, providing reliable and safe connections for industrial automation, manufacturing, and electronics assembly. Ideal for secure, high-quality electrical connections with easy installation and compatibility with Micro-One housings.
Order your Molex Series 212725 terminal position assurance retainer today and ensure reliable, secure terminal locking for your industrial projects.
