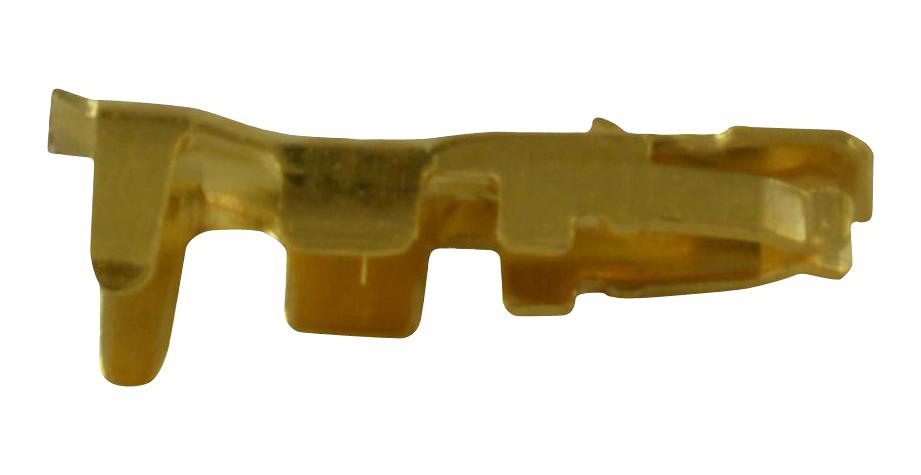

MOLEX 2026555000 Pico-EZmate Slim Terminal
The MOLEX 202655-5000 is a Pico-EZmate Slim female crimp terminal, part of the 202655 series. This connector is designed for wire-to-board applications, offering a compact 1.20mm pitch and robust gold-over-nickel plating for excellent signal transmission and durability. It's compatible with 28-30 AWG wire and is ideal for applications requiring space-saving and reliable connections in consumer electronics, automotive, and industrial equipment. The terminal is RoHS compliant and supports low-halogen requirements.
MOLEX 2026555000 Pico-EZmate Slim Terminal Specifications:
- Product Family Series: 202655
- Application: Wire-to-Board
- Gender: Female
- Material - Metal: Copper Alloy
- Material - Plating: Gold
- Plating min - Mating: 0.100µm
- Plating min - Termination: 0.100µm
- Termination Interface: Style: Crimp or Compression
- Wire Insulation Diameter: 0.60-0.70mm
- Wire Size AWG: 28, 30
- Wire Size mm²: 0.055-0.089
- Current - Maximum per Contact: 2.5A
- Voltage - Maximum: 50V AC (RMS)/DC
- Durability (mating cycles max): 10
- Net Weight: 6.690/mg
- UPC: 191128182058
