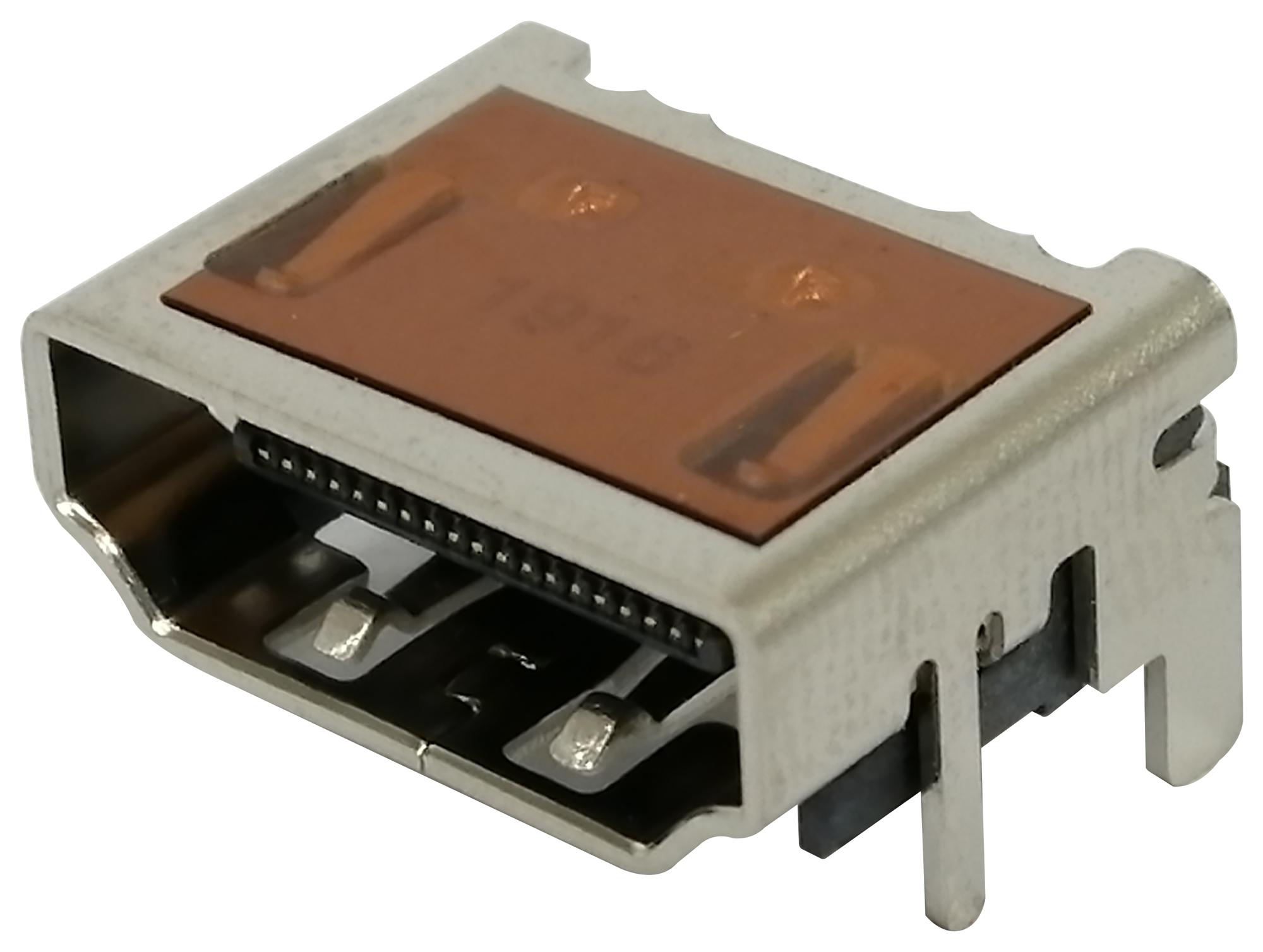

MOLEX 2086581081 HDMI Receptacle
The MOLEX 208658-1081 is a high-definition multimedia interface (HDMI) receptacle designed for wire-to-board connectivity. This right-angle connector features a 0.50mm pitch and gold flash plating, ensuring reliable signal transmission. It is polarized to both the mating part and the PCB, providing secure and accurate connections. Suitable for a wide range of applications requiring high-speed data transfer and video transmission, this receptacle is a robust and dependable solution for industrial and consumer electronics.
MOLEX 2086581081 HDMI Receptacle Specifications:
- circuits_loaded: 19
- circuits_maximum: 19
- color_resin: Black
- durability_mating_cycles_max: 10000
- gender: Female
- keying_to_mating_part: Yes
- lock_to_mating_part: Yes
- material_metal: Brass
- material_plating_mating: Gold
- material_plating_termination: Gold
- material_resin: Liquid Crystal Polymer
- net_weight_g: 2.178
- number_of_rows: 2
- orientation: Right Angle
- pcb_locator: Yes
- pcb_retention: Yes
- packaging_type: Embossed Tape on Reel
- panel_mount: Without Flange
- pitch_mating_interface: 0.50mm
- pitch_termination_interface: 0.50mm
- plating_min_mating_um: 0.051
- polarized_to_mating_part: Yes
- polarized_to_pcb: Yes
- ports: 1
- temperature_range_operating_c: -20 to +85
- termination_interface_style: Surface Mount
- current_max_per_contact_a: 0.5
- voltage_max_dc_v: 40
