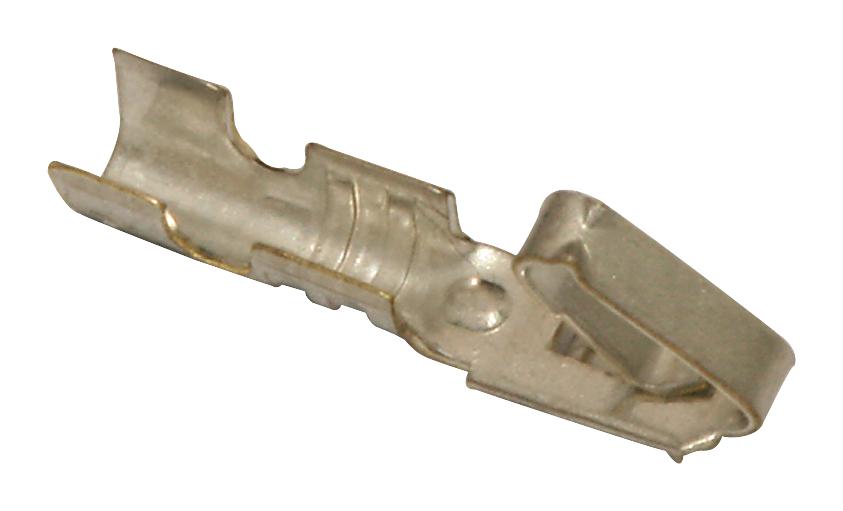

MOLEX 08700049 KK Crimp Terminal 5159
The MOLEX 08-70-0049 KK Crimp Terminal 5159 is a critical component within the KK Interconnect System, widely used in wire-to-board applications across various industries. Constructed from durable phosphor bronze and featuring tin plating, this terminal ensures reliable electrical connections. It supports a range of wire gauges, from 22 to 28 AWG, making it versatile for different project requirements. The terminal's design facilitates secure and efficient crimping, contributing to the overall performance and longevity of the connected system. MOLEX provides tooling options for efficient and consistent terminal installation.
MOLEX 08700049 KK Crimp Terminal 5159 Specifications:
- Material - Metal: Phosphor Bronze
- Material - Plating: Tin
- Plating min - Mating: 0.889µm
- Plating min - Termination: 0.914µm
- Termination Interface: Style: Crimp or Compression
- Wire Insulation Diameter: 1.20-1.70mm
- Wire Size AWG: 22, 24, 26, 28
- Net Weight: 91.500/mg
- Engineering Number: 5159PBTL
- UPC: Cat Ear, KK 800753614369
- EU ELV: Not Relevant
- EU RoHS: Compliant
- REACH SVHC: Not Contained
- China RoHS: Green Image
- Halogen-Free: Yes
- Low-Halogen: Yes
- RoHS Phthalates: Not Contained
- Application: Wire-to-Board
