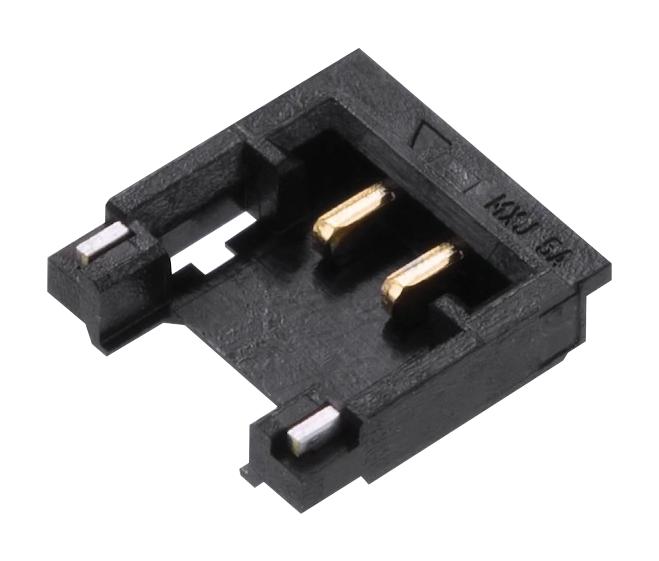

MOLEX 2026560021 Pico-EZmate Slim Header
The MOLEX 202656-0021 is a Pico-EZmate Slim wire-to-board header system, ideal for applications requiring a low profile and space-saving design. It boasts a vertical orientation and a compact 1.20mm mated height, making it suitable for densely populated PCBs. The header features side friction locks for secure mating and gold-plated contacts for reliable signal transmission. It is designed to mate with Pico-EZmate Slim receptacle housings and is surface mount compatible, simplifying integration into various electronic assemblies. Its robust construction and gold plating ensure durability and optimal performance in demanding environments.
MOLEX 2026560021 Pico-EZmate Slim Header Specifications:
- Material - Resin: Nylon
- Material - Plating Mating: Gold
- Material - Plating Termination: Gold
- Material - Metal: Copper Alloy
- Mated Height: 1.20mm
- Number of Rows: 1
- Orientation: Vertical
- PCB Retention: Yes
- Pitch - Mating Interface: 1.20mm
- Pitch - Termination Interface: 1.20mm
- Plating min - Mating: 0.100µm
- Plating min - Termination: 0.100µm
- Current - Maximum per Contact: 1.5A
- Voltage - Maximum: 50V AC (RMS)/DC
- Circuits (Loaded): 2
- Circuits (maximum): 2
- Color - Resin: Black
- Durability (mating cycles max): 10
- Guide to Mating Part: None
- Lock to Mating Part: Yes
- Polarized to Mating Part: Yes
- Polarized to PCB: Yes
- Stackable: No
- Surface Mount Compatible (SMC): Yes
- Temperature Range - Operating: -25°C to +85°C
- Termination Interface: Style: Surface Mount
- Breakaway: No
- PCB Locator: No
