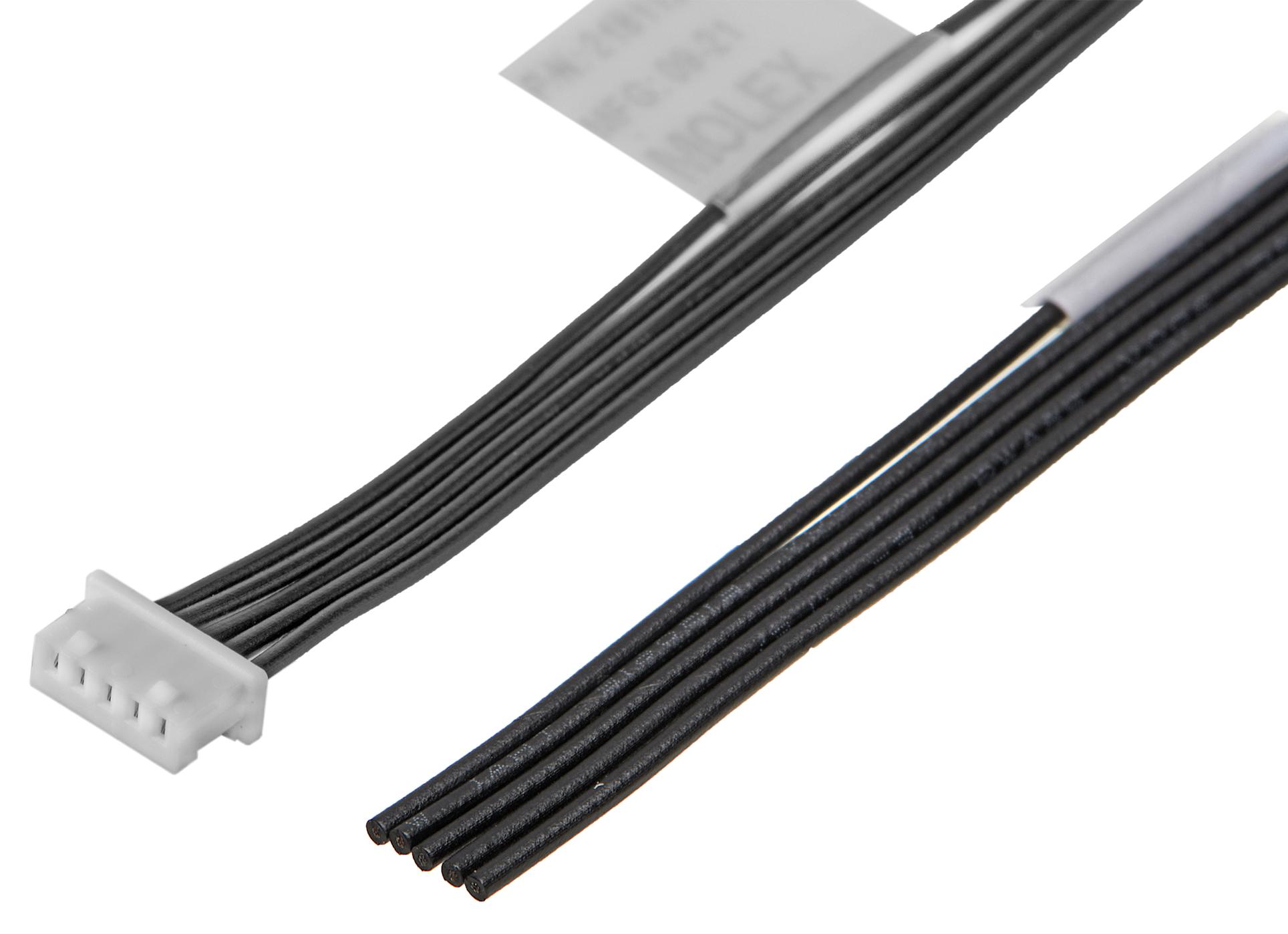

MOLEX 2181120504 PicoBlade Cable Assembly
The PicoBlade female-to-pigtail off-the-shelf cable assembly from the 218112 series provides a reliable 5-circuit, single-row connection with a 425mm length, ideal for signal wiring, wire-to-board, and wire-to-wire applications. Made from phosphor bronze with tin plating, it features polyester resin insulation, a 1.25mm pitch interface, and crimp or compression termination. Designed to mate with PicoBlade headers and plug housings, it ensures durable, secure connections suitable for prototyping and manufacturing needs, offering high performance and versatility.
MOLEX 2181120504 PicoBlade Cable Assembly Specifications:
- Cable Length: 425.00mm
- Circuits: 5
- Color - Resin: Natural
- Gender: Female-Pigtail
- Material - Metal: Phosphor Bronze
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Material - Resin: Polyester
- Wire Insulation Diameter: 1.25mm
- Wire Size: 28 AWG
- Wire/Cable Type: Discrete Wire Assembly
- Termination Interface: Crimp or Compression
- Voltage Rating: UL 1061
- Pitch - Mating Interface: 1.25mm
- Reference - Drawing Numbers: 195842250673
- Status: Active
- RoHS Compliant: Yes
- Halogen-Free: No
- Application: Signal, Wire-to-Board, Wire-to-Wire
- Assembly Configuration: Connector to Connector, Overmolded
- Packaging Type: Bag
Buy the Molex Series 218112 PicoBlade Female-to-Pigtail Cable Assembly: 2181120504
Upgrade your wiring setup with the Molex PicoBlade Cable Assembly from the 218112 series. Featuring a 5-circuit, 425mm length, single-row design, and precise 1.25mm pitch, this assembly provides secure, durable connections with tin-plated phosphor bronze contacts. Ideal for signal, wire-to-board, or wire-to-wire applications, it supports crimp or compression termination styles with 28 AWG wires. Manufactured with UL1061 standards, it ensures safety and efficiency across prototyping and production environments. Order online for fast, reliable delivery and seamless integration into your projects.
Get Molex 2181120504 today—built for precision, reliable connections, and long-lasting durability in signal wiring applications.
Frequently Asked Questions
Where can I buy MOLEX 2181120504?
You can click on the BUY or RFQ button to purchase 2181120504 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2181120504?
You can download the 2181120504 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2181120504?
MOLEX
