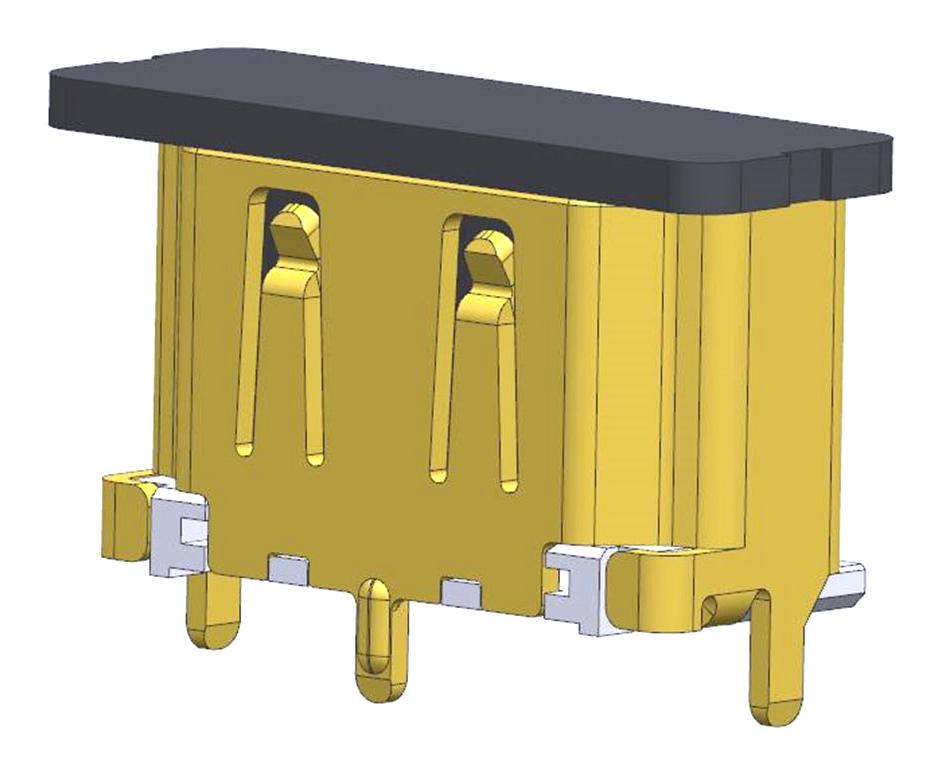

MOLEX 476591102 HDMI Receptacle
The MOLEX 47659-1102 is a high-definition multimedia interface (HDMI) receptacle designed for wire-to-board connectivity. This vertical receptacle features a 0.50mm pitch, gold flash plating for reliable signal transmission, and 19 circuits. It's suitable for applications requiring a secure and high-performance connection for HDMI signals, commonly found in consumer electronics and audio-visual equipment. The part is RoHS compliant and currently active, ensuring adherence to environmental regulations and continued availability.
MOLEX 476591102 HDMI Receptacle Specifications:
- product_family: I/O Connectors
- application: Wire-to-Board
- circuits_loaded: 19
- circuits_maximum: 19
- color_resin: Black
- durability_mating_cycles: 10000
- gender: Female
- lock_to_mating_part: Yes
- material_metal: Brass
- material_plating_mating: Gold
- material_plating_termination: Gold
- material_resin: Liquid Crystal Polymer
- net_weight_g: 1.710
- number_of_rows: 2
- orientation: Vertical
- pcb_locator: Yes
- pcb_retention: Yes
- packaging_type: Embossed Tape on Reel
- panel_mount: Without Flange
- pitch_mating_interface: 0.50mm
- pitch_termination_interface: 0.50mm
- plating_min_mating: 0.051µm
- plating_min_termination: 0.051µm
- polarized_to_mating_part: Yes
- polarized_to_pcb: Yes
- ports: 1
- temperature_range_operating_c: -20° to +85°
- termination_interface_style: Surface Mount
- current_maximum_per_contact_a: 0.5
- shielded: Yes
- voltage_maximum_dc: 40
- eu_elv: Not Relevant
- eu_rohs: Compliant
- reach_svhc: Not Contained
- halogen_free_status: Low-Halogen
- upc: 193264442690
