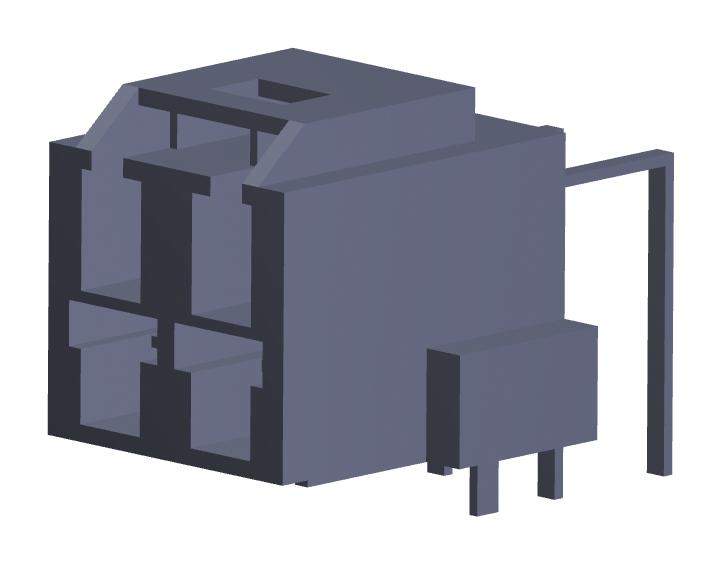

MOLEX 2035551114 CP-6.5 Header
The MOLEX 203555-1114 CP-6.5 header is a robust wire-to-board connector solution designed for power applications. With a 6.50mm pitch and dual-row configuration, it accommodates multiple circuits while maintaining a compact profile. The right-angle orientation simplifies PCB layout and reduces strain on connections. Constructed with a copper alloy and matte tin plating, this header ensures reliable electrical contact and durability. It is polarized to both the mating part and the PCB, enhancing assembly accuracy and preventing misconnections. Suitable for applications requiring a maximum current of 11.8A and a voltage of 600V, this connector is ideal for power distribution in various industrial and consumer electronics.
MOLEX 2035551114 CP-6.5 Header Specifications:
- Product Family: PCB Headers
- Series: 203555
- Application: Power, Wire-to-Board
- Current-Max: 11.8A
- Pitch-Mating: 6.50mm
- Product Name: CP-6.5
- Circuits (Loaded): 4
- Circuits (maximum): 4
- Durability (mating cycles max): 30
- Flammability: 94V-0
- Guide to Mating Part: Yes
- Lock to Mating Part: Yes
- Material - Metal: Copper Alloy
- Material - Plating Mating: Matte Tin
- Material - Plating Termination: Matte Tin
- Material - Resin: Nylon
- Number of Rows: 2
- Orientation: Right Angle
- PC Tail Length: 3.81mm
- PCB Locator: Yes
- PCB Retention: Yes
- PCB Thickness - Recommended: 1.60mm
- Plating min - Mating: 1.270µm
- Plating min - Termination: 1.270µm
- Polarized to Mating Part: Yes
- Temperature Range - Operating: -40° to +105°C
- Termination Interface Style: Through Hole
- Voltage - Maximum: 600V AC (RMS)/DC
- Mates With: CP-6.5 Receptacle Housing 1512072406
