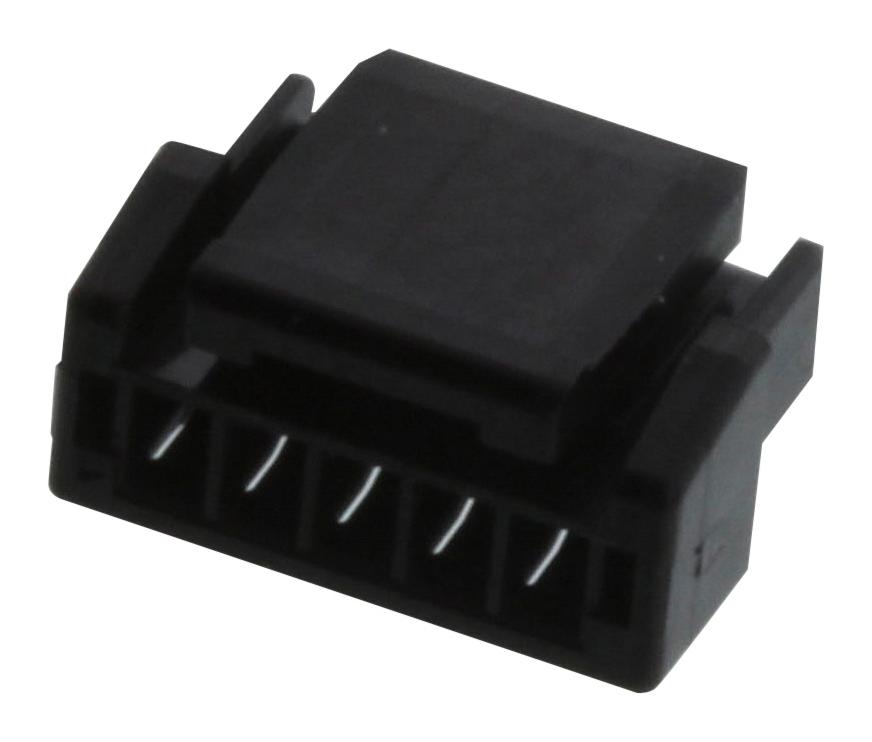

MOLEX 2045320501 Wire-to-Board Connector
The Micro-Lock Plus Receptacle Housing is a 1.25mm pitch, single-row, wire-to-board connector designed for reliable electrical connections in compact electronic assemblies. Featuring a positive lock mechanism, low-halogen resin material, and UL CSA certification, it ensures secure and safe connections. Suitable for applications requiring a maximum of five circuits, it offers excellent durability across a temperature range of -40°C to +105°C. The black polyester housing is panel-mount capable, polarized to mating parts, and ideal for industrial and electronic device integration.
MOLEX 2045320501 Wire-to-Board Connector Specifications:
- Pitch: 1.25mm
- Number of Circuits: 5
- Color: Black
- Material: Polyester, Low-Halogen
- Gender: Receptacle
- Lock to Mating Part: Yes
- Panel Mount: No
- Glow-Wire Capable: No
- Temperature Range: -40°C to +105°C
- Certification: UL Listed, CSA Certified
- Net Weight: 111.303 mg
- Packaging: Bag
- Reference Drawing: AS-505565-001-001
- Application Specification: 2045320001-PS-000
- RoHS Compliant: Yes
- Halogen-Free: Yes
Buy the Molex 2045320501 – Reliable Micro-Lock Plus Connector for Industrial Applications
Secure your electronic assemblies with the Molex Micro-Lock Plus Receptacle Housing, featuring 1.25mm pitch, positive lock mechanism, UL CSA certification, and low-halogen material. Designed for up to five circuits, it offers durability across -40°C to +105°C temperature range and is suitable for compact, high-reliability applications such as industrial equipment and electronic devices. Order online now to guarantee reliable electrical connections with quality assured for demanding applications, providing confidence in your assembly's safety and performance.
Order your Molex 2045320501 Micro-Lock Plus Receptacle Housing today and ensure secure, reliable connections in your electronic projects with high-quality connectivity.
Frequently Asked Questions
Where can I buy MOLEX 2045320501?
You can click on the BUY or RFQ button to purchase 2045320501 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2045320501?
You can download the 2045320501 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2045320501?
MOLEX
