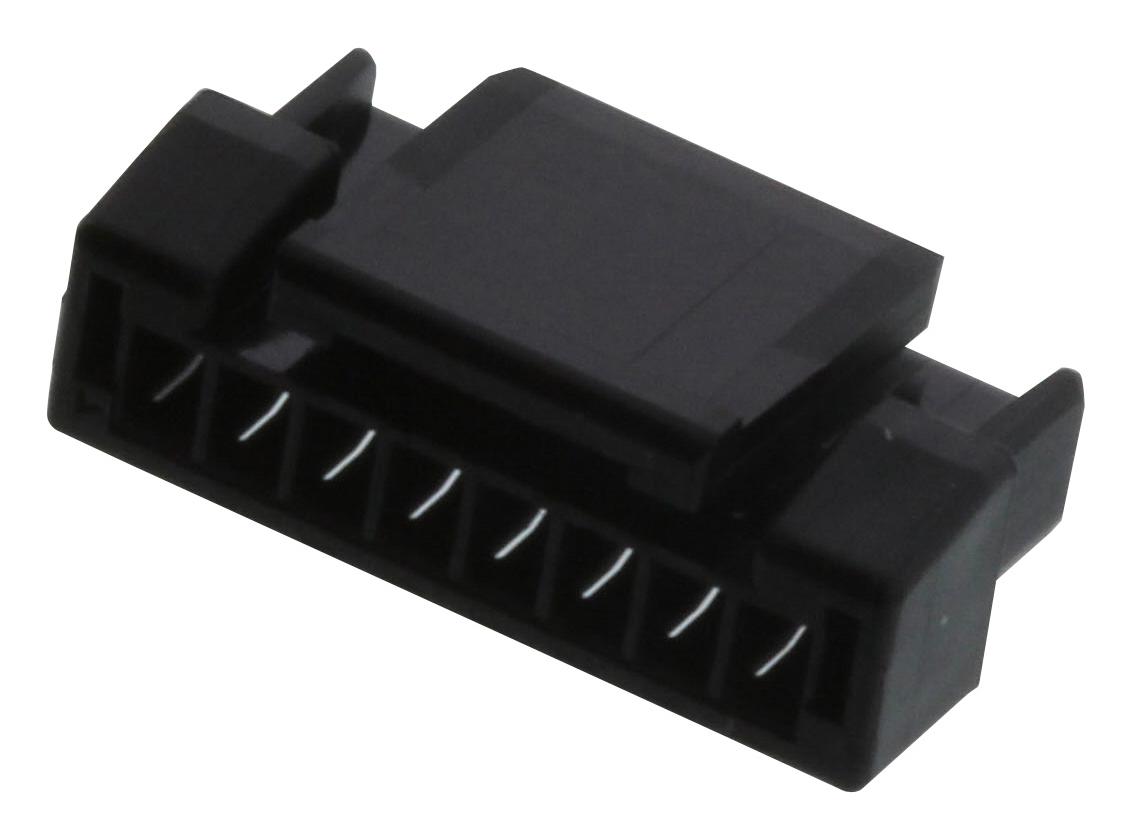

MOLEX 2045320801 Wire-to-Board Connector
The Micro-Lock Plus Receptacle Housing is a 1.25mm pitch wire-to-board connector designed for reliable connections in electronic assemblies. This single-row, low-halogen housing features a positive lock mechanism to ensure secure mating with compatible headers and terminals. Made from durable polyester resin, it supports operating temperatures from -40°C to +105°C. Suitable for various applications, it offers UL and CSA certification, and is designed for easy panel mounting with a compact, lightweight design that facilitates efficient electrical connections in tight spaces.
MOLEX 2045320801 Wire-to-Board Connector Specifications:
- Circuits (maximum): 8
- Color - Resin: Black
- Gender: Receptacle
- Glow-Wire Capable: No
- Lock to Mating Part: Yes
- Material - Resin: Polyester
- Net Weight: 154.677 mg
- Number of Rows: 1
- Packaging Type: Bag
- Pitch - Mating Interface: 1.25mm
- Pitch - Termination Interface: 1.25mm
- Temperature Range - Operating: -40°C to +105°C
- Agency Certifications: UL, CSA
- Halogen-Free: Yes
- RoHS Compliant: Yes
- Country Regulation: China RoHS compatible
Buy the Molex Series Micro-Lock Plus 1.25mm Receptacle: 2045320801
Discover the Molex Series Micro-Lock Plus wire-to-board connector, featuring a 1.25mm pitch, single row design, positive lock, and low-halogen housing for enhanced safety and durability. This high-quality connector supports up to 8 circuits, offers UL and CSA certifications, and operates efficiently within a temperature range of -40°C to +105°C. Its polyester resin construction ensures robustness in various environments. Ideal for electronics requiring secure, compact connections, it’s the perfect choice for engineers seeking reliability and ease of assembly in tight spaces.
Order your Molex Series Micro-Lock Plus 2045320801 today and secure reliable, low-profile electrical connections for your electronic projects.
Frequently Asked Questions
Where can I buy MOLEX 2045320801?
You can click on the BUY or RFQ button to purchase 2045320801 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2045320801?
You can download the 2045320801 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2045320801?
MOLEX
