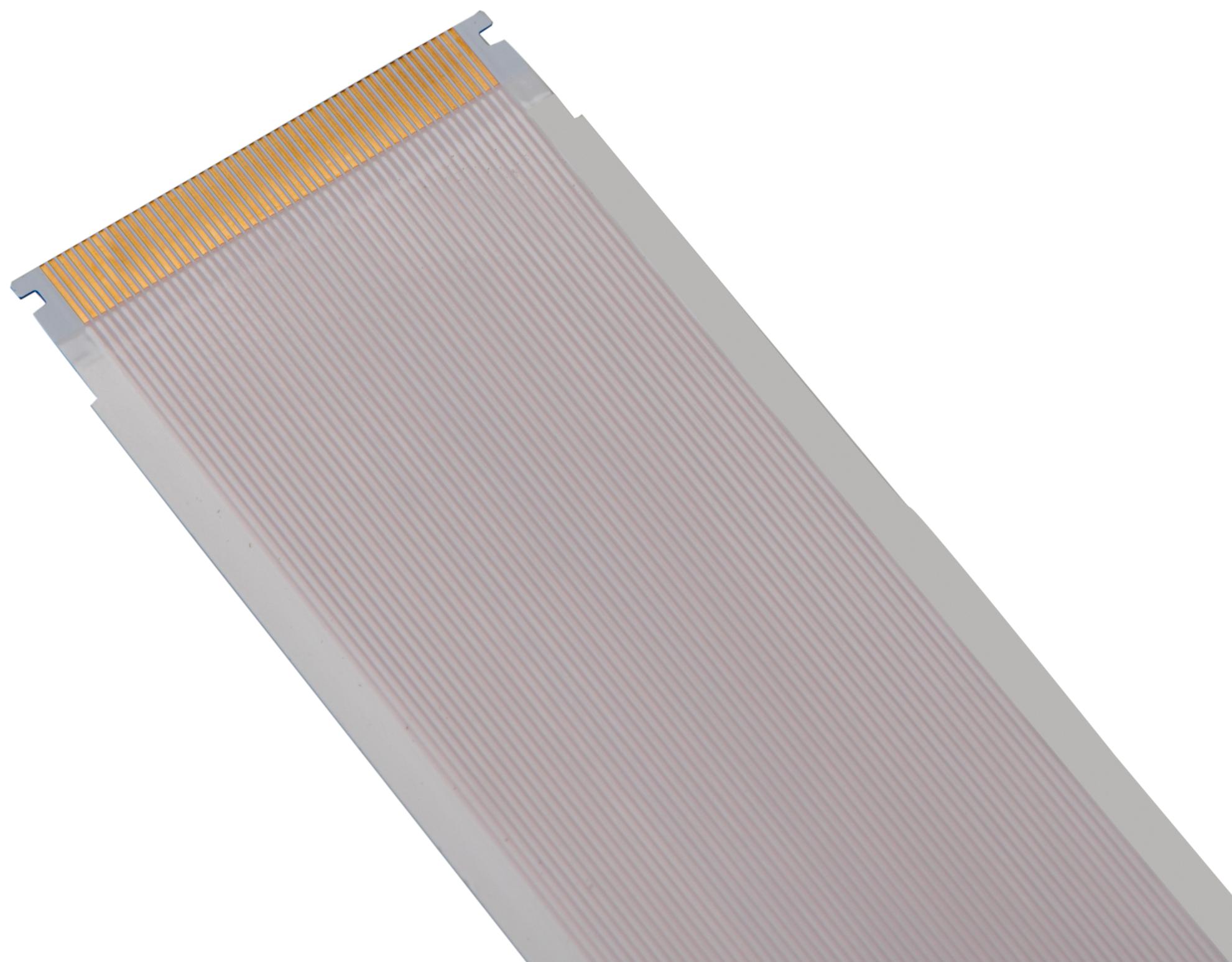

MOLEX 150160211 FFC Jumper
This 15016 series 0.50mm pitch Premo-Flex One-Touch FFC jumper is engineered for seamless connectivity with Molex's Easy-On One-Touch connectors. It features a single-step pushbutton locking mechanism, same-side contacts, and gold plating for superior conductivity and corrosion resistance. Operating reliably from -40°C to +105°C, it supports applications in consumer electronics, medical technology, data, automotive, and industrial sectors. With a maximum current of 0.3A per circuit, this versatile jumper ensures quick, secure connections with design flexibility for a variety of complex electronic systems.
MOLEX 150160211 FFC Jumper Specifications:
- Pitch: 0.50mm
- Cable Length: 102.00mm
- Number of Circuits: 20
- Contact Layout: Same side contacts (Type A)
- Material - Plating: Gold (Au)
- Operating Temperature Range: -40°C to +105°C
- Wire Size: Not applicable
- Cable Type: Flat Flex Cable
- Maximum Current per Contact: 0.3A
- RoHS and REACH compliant
- Packaging: Bag
- Mates With: Easy-On FFC/FPC One-Touch Connector Series 200485
- Connector Type: One-Touch locking
- Material: Premo-Flex flexible cable
- Operating Voltage: Not specified but suitable for low voltage applications
- Certifications: RoHS, China RoHS, Low-Halogen, Halogen-Free
Buy the Buy Molex FFC Cable Jumpers Part Number 150160211 Online
Purchase the Molex FFC Jumper 150160211 online and enjoy fast, secure, and easy connections with its one-touch locking mechanism. Designed for high reliability, this 0.50mm pitch flexible cable jumper supports up to 20 circuits with a maximum current of 0.3A per contact. Its robust gold-plated contacts ensure excellent conductivity and corrosion resistance. Operating efficiently across a temperature range of -40°C to +105°C, it's ideal for applications in consumer electronics, MedTech, data, automotive, and industrial sectors. Order now for quick delivery and superior performance.
Buy Molex 150160211 now and experience quick, reliable connections with flexible design for consumer electronics, medical, data, automotive, and industrial applications.
Frequently Asked Questions
Where can I buy MOLEX 150160211?
You can click on the BUY or RFQ button to purchase 150160211 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 150160211?
You can download the 150160211 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 150160211?
MOLEX
