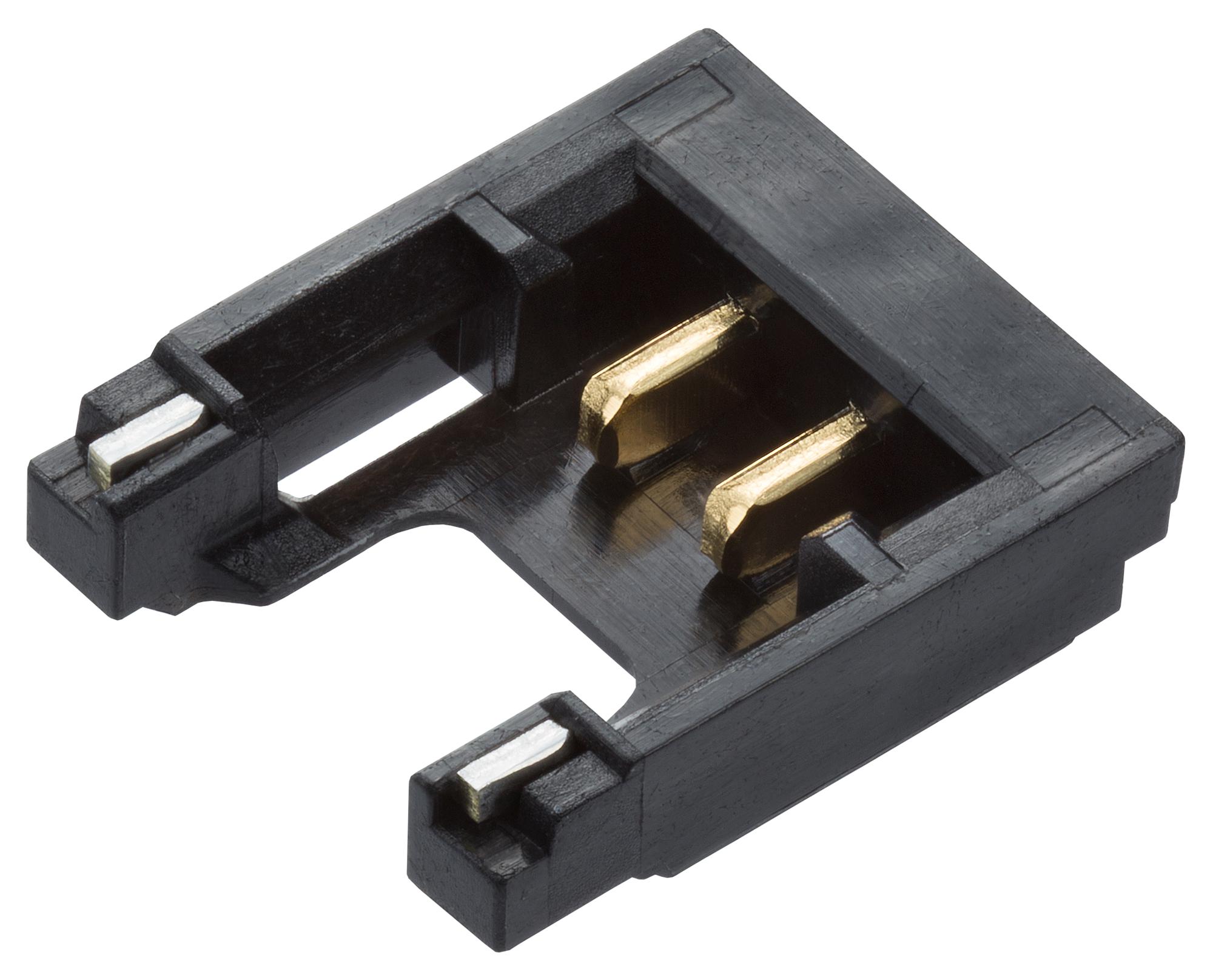

MOLEX 2121340002 Pico-EZmate PCB Header
The MOLEX 212134-0002 is a Pico-EZmate PCB header, part of the 212134 series, designed for wire-to-board connectivity. This header offers a 1.00mm pitch, a single-row configuration, and gold (Au) plating for enhanced conductivity and corrosion resistance. It supports a maximum of 2 circuits and is suitable for applications in consumer electronics, industrial equipment, and automotive systems where space is limited and reliable signal transmission is crucial. The header is polarized to the mating part and PCB, ensuring correct alignment during assembly.
MOLEX 2121340002 Pico-EZmate PCB Header Specifications:
- status: Active
- overview: Pico-EZmate and Pico-EZmate Slim Wire-to-Board Connector Systems
- description: Pico-EZmate Plus PCB Header, 1.00mm Pitch, Single Row, Gold (Au) Plating, 2 Circuits
- circuits_loaded: 2
- circuits_maximum: 2
- color_resin: Black
- glow_wire_capable: No
- guide_to_mating_part: None
- keying_to_mating_part: None
- lock_to_mating_part: Yes
- material_metal: Copper Alloy
- material_plating_mating: Gold
- material_resin: Polyamide
- net_weight_mg: 18.120
- number_of_rows: 1
- orientation: Vertical
- pcb_locator: No
- pcb_retention: Yes
- packaging_type: Embossed Tape on Reel
- pitch_mating_interface: 1.00mm
- plating_min_mating: 0.100µm
- polarized_to_mating_part: Yes
- polarized_to_pcb: Yes
- smc_compatible: Yes
- operating_temperature_range: -40° to +105°C
- termination_interface_style: Surface Mount
- current_maximum_per_contact: 2.8A
- voltage_maximum: 50V AC (RMS)/DC
- elv_not_relevant: Not Relevant
- china_roh: Compliant
- reach_svhc: Not Contained
- halogen_free_status: Low-Halogen
- series: 212134 Series
- mates_with: Pico-EZmate Plus Receptacle Housing 212132
