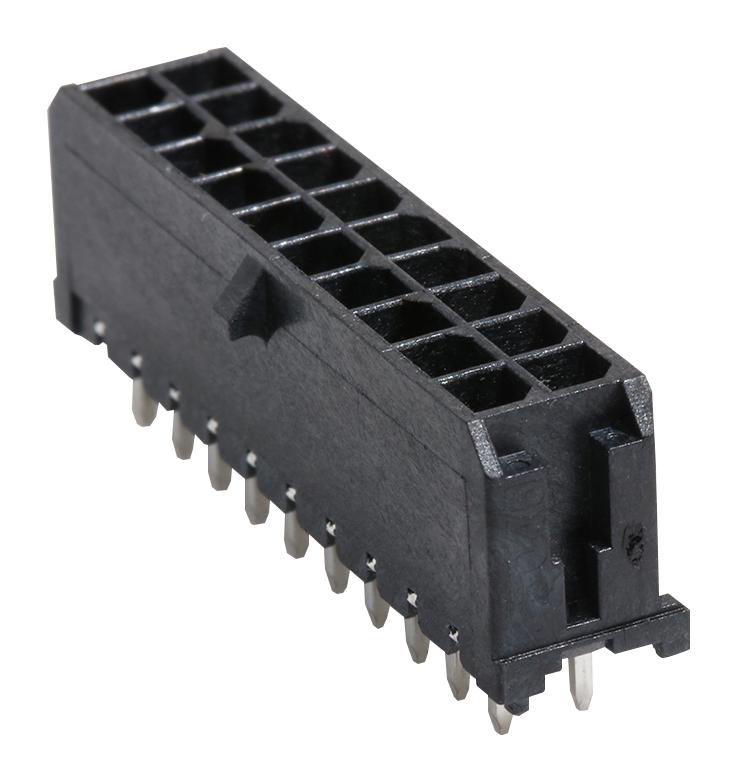

MOLEX 430452027 Micro-Fit Connector
The Micro-Fit 3.0 Vertical Header is a high-quality, 3.00mm pitch, dual-row connector with 20 circuits, featuring PCB mounting, a polarizing peg, and tin plating. Its glow-wire capable design ensures safety in household and similar electrical appliances, meeting IEC standards for fire resistance and heat resistance. Made from high-temperature thermoplastic, it supports an operating temperature range of -40°C to +105°C and is rated for 8.5A current and 600V voltage. Suitable for power and wire-to-board applications, this connector ensures reliable electrical connections with durability up to 30 mating cycles.
MOLEX 430452027 Micro-Fit Connector Specifications:
- Pitch: 3.00mm
- Number of Circuits: 20
- Material: High Temperature Thermoplastic
- Color - Resin: Black
- Plating Mating: Tin
- Plating Termination: Tin
- Mated Height: 1.60mm
- Maximum Mating Cycles: 30
- Operating Temperature Range: -40°C to +105°C
- Current Rating: 8.5A
- Voltage Rating: 600V
- Durability (Mating Cycles): 30
- Glow-Wire Capable: Yes
- Lock to Mating Part: None
- PCB Thickness - Recommended: 1.60mm
- Termination Interface: Through Hole
- Surface Mount Compatible: No
- Stackable: No
Buy the Buy Molex Micro-Fit 3.0 Connector Part Number 0430452027 Online
Purchase the Molex Micro-Fit Connector, a high-quality 20-circuit power and wire-to-board connector with a 3.00mm pitch, polarizing feature, and glow-wire capability. Manufactured from high-temperature thermoplastic, it supports electrical ratings of 8.5A and 600V, ensuring efficiency and safety in electronics projects. Suitable for numerous applications, this connector offers a reliable connection with up to 30 mating cycles, assured durability, and compliance with international safety standards, making it a trusted choice for professional and DIY electronics assembly.
Order your Molex Series43045 0430452027 high-temperature PCB connector today and ensure reliable power connections with glow-wire safety and durable design.
Frequently Asked Questions
Where can I buy MOLEX 430452027?
You can click on the BUY or RFQ button to purchase 430452027 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 430452027?
You can download the 430452027 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 430452027?
MOLEX
