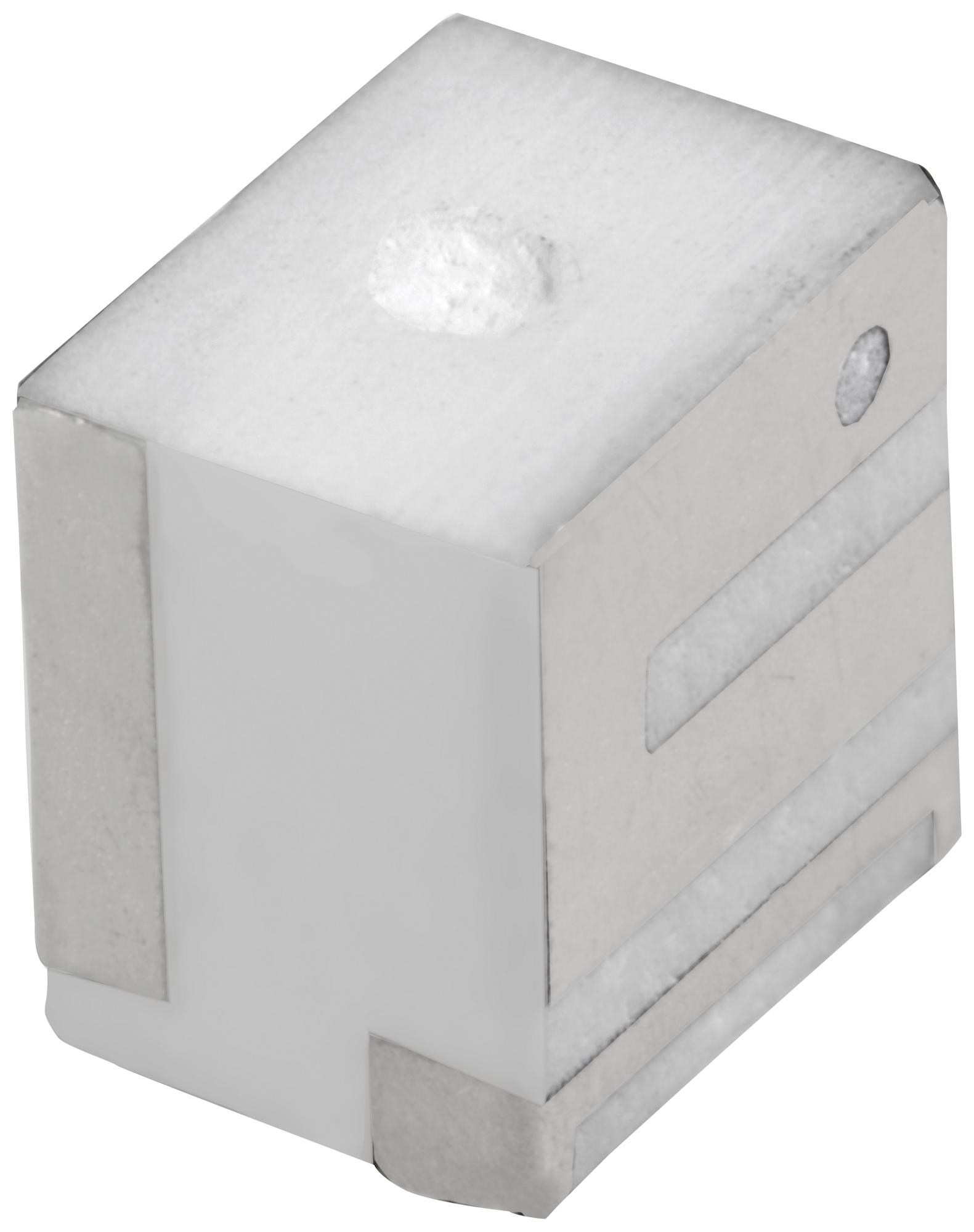

MOLEX 2065140001 Wi-Fi Antenna
This 2.4GHz / 5GHz SMT ceramic antenna is designed for IoT and wireless applications, including Wi-Fi, Bluetooth, Zigbee, and Thread. Its compact size of 4.00mm by 3.00mm, omni-directional radiation pattern, and linear polarization make it ideal for space-constrained devices. The antenna offers peak gains of 3.5 dBi at 2.4 GHz and 6.2 dBi at 5 GHz, with total efficiency over 75%. RoHS compliant, halogen-free, and suitable for Surface Mount technology, it ensures reliable wireless connectivity across various IoT products.
MOLEX 2065140001 Wi-Fi Antenna Specifications:
- Size: 4.00mm x 3.00mm
- Mounting Style: Surface Mount
- Polarization: Linear
- Radiation Pattern: Omnidirectional
- Bandwidth: 2400-2483.5 MHz (2.4 GHz), 5150-5850 MHz (5 GHz)
- Peak Gain: 3.5 dBi (2.4 GHz), 6.2 dBi (5 GHz)
- Return Loss: <-5 dB to <-8 dB
- Total Efficiency: >75%
- Material: Ceramic
- RoHS Compliance: Yes
- Halogen-Free: Yes
- Cable Length: N/A
- Net Weight: 0.139 g
Buy the Molex Series 206514 Wi-Fi Antenna: 2.4/5GHz Ceramic SMT Antenna 2065140001
Enhance your IoT and wireless device performance with this high-quality 2.4/5GHz ceramic SMT antenna. Designed for space-constrained applications, it delivers omnidirectional radiation, high efficiency over 75%, and peak gains of 3.5 dBi at 2.4 GHz and 6.2 dBi at 5 GHz. Its compact 4.00mm by 3.00mm size and RoHS compliance make it ideal for modern IoT, Bluetooth, Zigbee, and Thread applications, ensuring robust and reliable wireless connectivity in diverse environments.
Buy Molex 2065140001 now and experience reliable high-frequency wireless performance in your IoT devices.
Frequently Asked Questions
Where can I buy MOLEX 2065140001?
You can click on the BUY or RFQ button to purchase 2065140001 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2065140001?
You can download the 2065140001 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2065140001?
MOLEX
