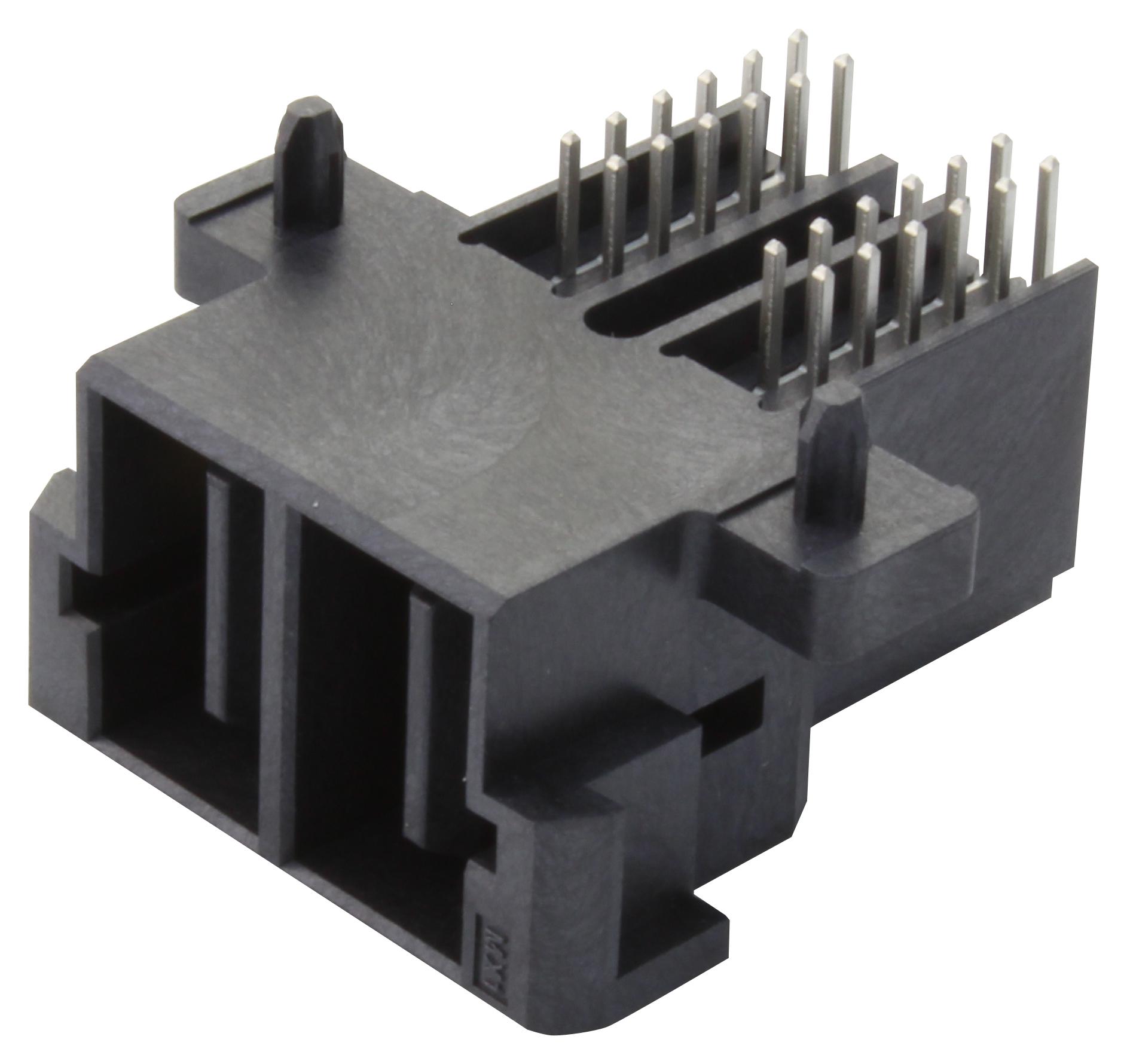

MOLEX 1510350002 EXTreme Guardian Power Header
The MOLEX 151035-0002 EXTreme Guardian Power Right-Angle Plug PCB Header is a robust solution for wire-to-board power connections. Designed with an 11.00mm pitch and a 2.36mm PCB thickness, this header offers a secure and reliable connection. The gold-plated mating interface ensures excellent conductivity, while the tin-plated termination facilitates easy soldering. Its right-angle orientation simplifies board layout and reduces stress on the connection. Suitable for applications requiring high current capacity (up to 80.0A) and voltage (up to 600V AC/DC), this header is ideal for power supplies, industrial equipment, and automotive applications.
MOLEX 1510350002 EXTreme Guardian Power Header Specifications:
- pitch_mating_interface: 11.00mm
- circuits_loaded: 2
- circuits_maximum: 2
- durability_mating_cycles_max: 25
- flammability: 94V-0
- material_metal: Copper Alloy
- material_plating_mating: Gold (0.076µm)
- material_plating_termination: Tin
- material_resin: Liquid Crystal Polymer
- number_of_rows: 1
- orientation: Right Angle
- pc_tail_length: 3.86mm
- pcb_thickness_recommended: 2.36mm
- current_maximum_per_contact: 80.0A
- voltage_maximum: 600V AC/DC
- temperature_range_operating: -40° to +105°C
- lead_free_process_capability: SMC&WAVE
- max_cycles_at_max_process_temp: 001
- process_temperature_max_c: 260
- halogen_free_status: Low-Halogen
