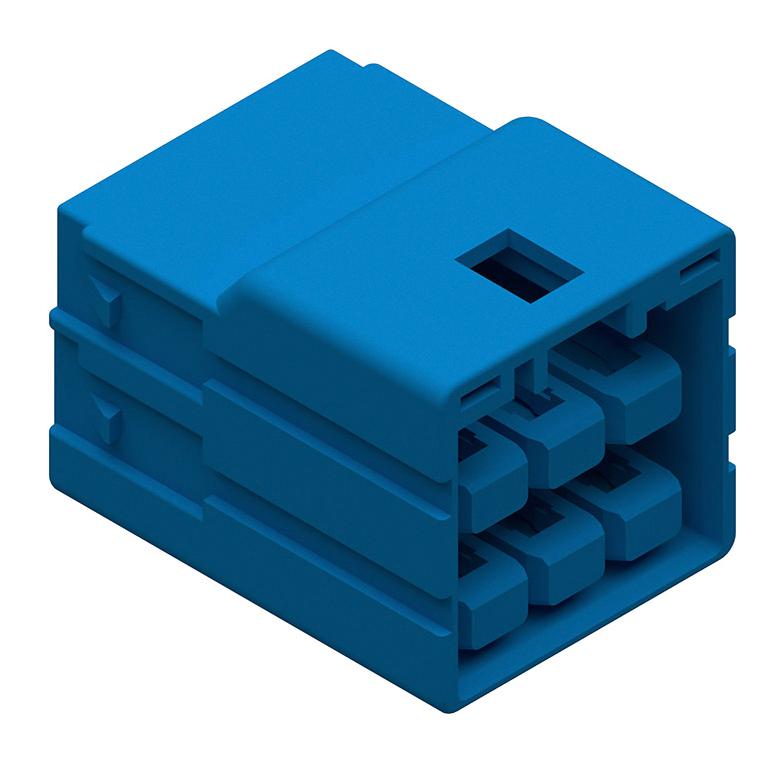

MOLEX 2069962601 Wire-to-Wire Connector
The 206996 series CP-4.5 wire-to-wire connectors are glow-wire capable and halogen-free, designed with a robust housing and a secure locking mechanism for industrial and consumer applications. Made from UL94V-0 nylon, these connectors support up to 600V and 2.0A to 10.0A current ratings. They feature polarized, keyed, and color-coded designs for easy, fool-proof mating and reduced inventory. Rated for 30 mating cycles, they operate from -40°C to +120°C, with raised sides to prevent wire snagging. Various colors facilitate quick assembly and maintenance.
MOLEX 2069962601 Wire-to-Wire Connector Specifications:
- Rated Voltage: 600V (AC/DC)
- Current Rating: 2.0A to 10.0A
- Maximum Mating Cycles: 30
- Operating Temperature: -40°C to +120°C
- Material: UL94V-0 nylon
- Color: Blue (other colors available)
- Housing Features: Raised sides for wire snag prevention
- Locking Mechanism: Positive lock and keyed design
- Gender: Receptacle
- Number of Circuits: 6
- Pitch - Mating Interface: 4.50mm
- RoHS Compliance: Yes
- Glow-Wire Capable: Yes
- Halogen Free: Yes
Buy the Molex 2069962601 – Reliable Wire-to-Wire Connectors for Industrial Applications
Enhance your electronic assemblies with the Molex 2069962601 wire-to-wire connector, featuring robust UL94V-0 nylon housing, secure positive-lock mechanisms, polarized and keyed design, and high-temperature operation. Supporting up to 600V and currents from 2.0A to 10.0A, these connectors are ideal for demanding industrial, consumer, and power applications where reliability and safety are critical. With a rated lifespan of 30 mating cycles and various color options, streamline your assembly process and reduce inventory complexity with these versatile, glow-wire capable connectors.
Order your Molex series 2069962601 secure locking connectors today and ensure reliable performance in your industrial or automation projects.
Frequently Asked Questions
Where can I buy MOLEX 2069962601?
You can click on the BUY or RFQ button to purchase 2069962601 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2069962601?
You can download the 2069962601 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2069962601?
MOLEX
