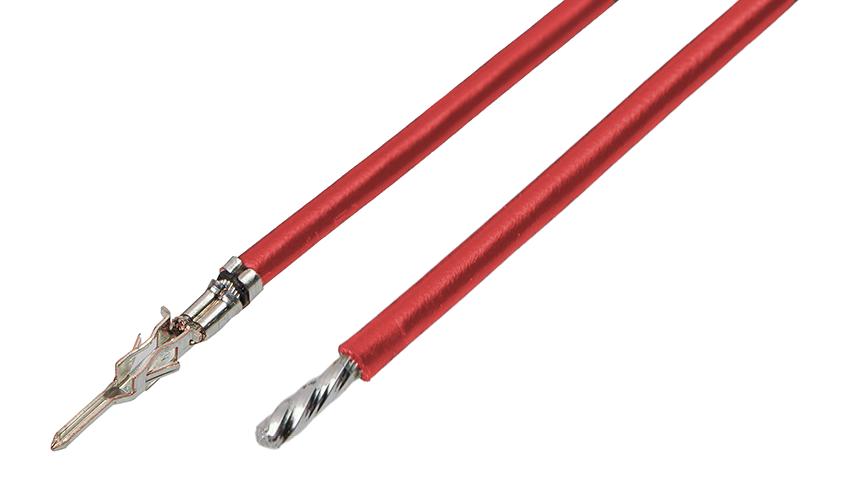

MOLEX 2147632222 Power Lead
The Micro-Fit 3.0 Male-to-Pigtail Pre-Crimped Lead features a 150mm length with 18 AWG wire, gold-plated contacts, and a red insulating cover. Designed for reliable power and signal connections, it utilizes crimp or compression terminations and is compatible with Micro-Fit 3.0 plug housings. This lead offers a maximum current of 8.5A per contact and is RoHS compliant, halogen-free, and suitable for connector to connector applications in various power and wiring assemblies, ensuring durability and performance in industrial and electronic devices.
MOLEX 2147632222 Power Lead Specifications:
- Cable Length: 150.00mm
- Wire Size AWG: 18
- Wire Insulation Diameter: 1.85mm max.
- Color - Resin: Red
- Gender: Male-Pigtail
- Material - Metal: Phosphor Bronze
- Material - Plating Mating: Gold
- Material - Plating Termination: Tin
- Current - Maximum per Contact: 8.5A
- Plating min - Mating: 0.762um
- Plating min - Termination: 2.540um
- Termination Interface Style: Crimp or Compression
- Applicable with Micro-Fit 3.0 Housings
- RoHS and REACH SVHC compliant
- Halogen-Free, Not Low-Halogen
- Application: Power and signal connections in industrial and electronic devices
- Connector Type: Male-to-Pigtail
- Net Weight: 1.786g
- Part Number: 2147632222
Buy the Molex 2147632222 – Reliable Micro-Fit 3.0 Power Lead for Industrial Applications
Purchase the Molex 2147632222 power lead online today to ensure reliable, high-quality power connections in your electronic or industrial projects. This 150mm long male-to-pigtail lead features 18 AWG wire, gold-plated contacts, and RoHS compliance, providing durability and excellent electrical performance. Designed for seamless integration with Micro-Fit 3.0 connectors, it offers a maximum current of 8.5A per contact. Elevate your wiring assemblies with this dependable component, available for quick online ordering and fast delivery to keep your projects on schedule.
Buy Molex 2147632222 now and experience unmatched reliability and performance in power and signal connections.
