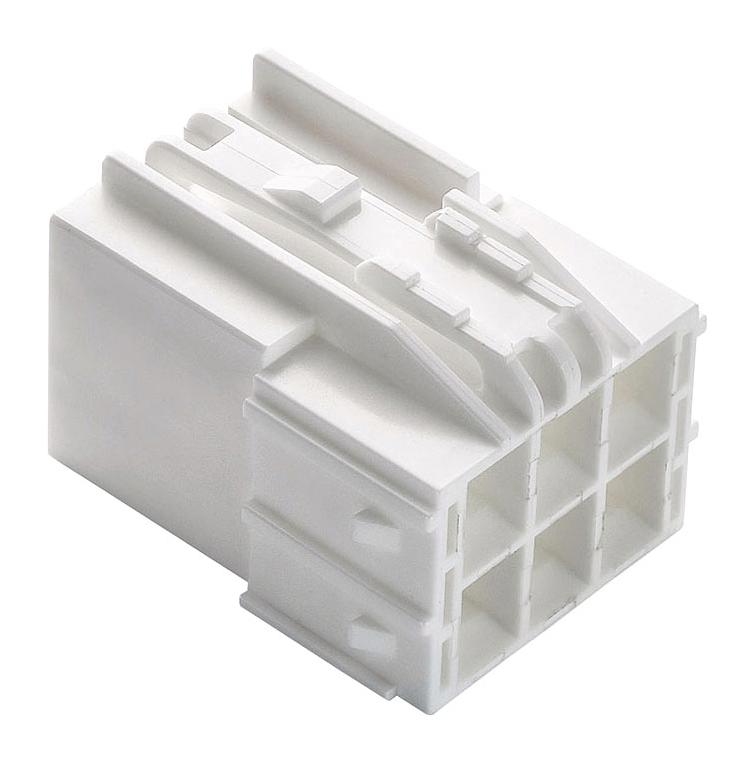

MOLEX 2069972611 Wire Connector
The CP-4.5 wire-to-wire connectors are glow-wire capable and halogen-free, suitable for consumer, industrial, and power applications. They feature reliable locking mechanisms that include foolproof, keyed, color-coded, and polarized design to minimize inventory and operational costs. The housing has integral beam supports to prevent wire snagging, polarization keys to ensure correct mating, and an audible click for secure connection. Rated for up to 600V and current from 2.0 to 10.0A, they are made of UL94V-0 nylon and support 30 mating cycles in temperatures from -40°C to +120°C, meeting safety standards.
MOLEX 2069972611 Wire Connector Specifications:
- Voltage Rating: 600V AC/DC
- Current Rating: 2.0 to 10.0A
- Material: UL94V-0 Nylon
- Temperature Range: -40°C to +120°C
- Housing Color: Natural (White)
- Number of Circuits: 6
- Number of Rows: 2
- Locking Mechanism: Integral beam supports, audible click
- Mating Cycle Durability: Up to 30 cycles
- RoHS Compliant, Halogen-Free
- Glow-Wire Capable: Yes
- Gender: Plug Housing
- Application: Wire-to-Wire, Wire-to-Board
- Packaging: Bag
- Housing Type: Connector Housing
Buy the Molex Series CP-4.5 Wire-to-Wire Connector: 2069972611
Purchase the Molex Series CP-4.5 wire-to-wire connector today online to experience durable and reliable connections, rated for 600V and up to 10A. This halogen-free, glow-wire capable connector features secure locking mechanisms, polarization keys, and integral beam supports for wire snag prevention. Designed for a wide operating temperature range from -40°C to +120°C, it supports 30 mating cycles, making it ideal for industrial, consumer, and power applications requiring safety and durability. Available now for fast delivery.
Order your Molex Series CP-4.5 2069972611 today and ensure secure, reliable power connections for your industrial and consumer projects.
