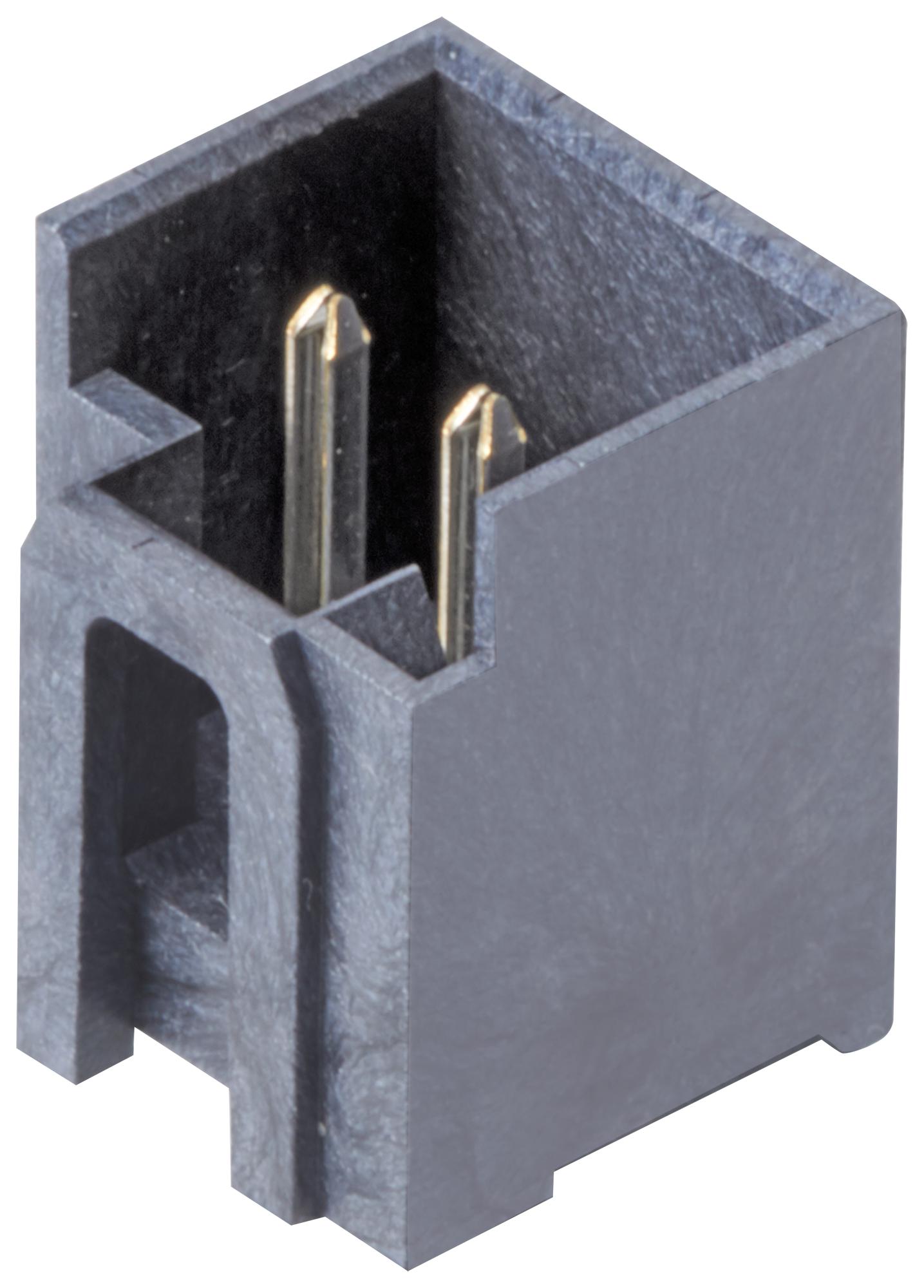

MOLEX 2074790002 L1NK 396 Header
The MOLEX 2074790002 L1NK 396 header is a robust and reliable connector solution for power and wire-to-board applications. Its vertical orientation and fully shrouded design provide secure and protected connections. The tin plating ensures excellent solderability and corrosion resistance. Designed for industrial environments, this header offers durability and performance, making it suitable for various applications requiring a secure and efficient electrical interface. It is RoHS compliant and part of the L1NK connector system, ensuring compatibility with related components.
MOLEX 2074790002 L1NK 396 Header Specifications:
- overview: L1NK Connector System
- description: L1NK 396 Header, Vertical, Fully Shrouded, Tin (Sn) Plating, 2 Circuits, with Peg
- product_family: PCB Headers
- application: Power, Wire-to-Board
- current_max: 11.0A
- pitch_mating: 3.96mm
- circuits_loaded: 2
- circuits_maximum: 2
- material_plating_mating: Tin
- material_plating_termination: Tin
- material_resin: Liquid Crystal Polymer
- orientation: Vertical
- pc_tail_length: 3.50mm
- durability_mating_cycles: 25
- flammability: 94V-0
- glow_wire_capable: Yes
- keying_to_mating_part: None
- lock_to_mating_part: Yes
- pcb_thickness_recommended: 1.60mm
- packaging_type: Tray
- polarized_to_mating_part: Yes
- polarized_to_pcb: Yes
- shrouded: Fully
- stackable: No
- smc_compatible: No
- operating_temperature_range: -40° to +105°C
- termination_interface_style: Through Hole
- voltage_max: 350V AC/DC
- material_metal: Brass
- net_weight: 1.430/g
- number_of_rows: 1
- agency_certification: UL E29179
- elv: Not Relevant
- rohs: Compliant
- reach_svhc: Not Contained
- halogen_free_status: Low-Halogen
