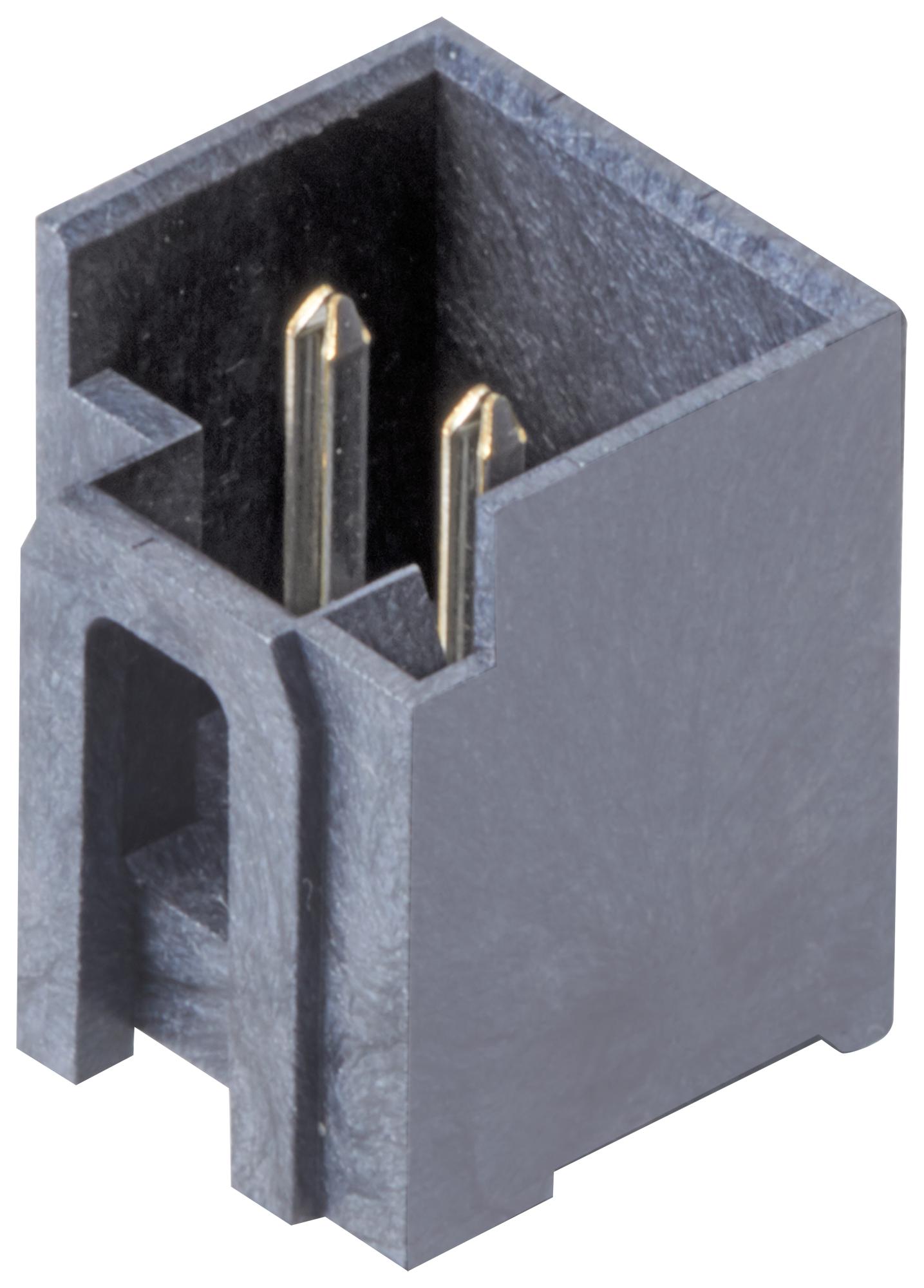

MOLEX 2074790003 L1NK 396 Header
The MOLEX 207479-0003 L1NK 396 Header is a robust and reliable vertical PCB header designed for power and wire-to-board applications. It features a fully shrouded design to protect the contacts and ensure secure mating. The tin plating provides excellent solderability and corrosion resistance. Part of the L1NK Connector System, this header is ideal for applications requiring high current carrying capacity and a secure connection. It is RoHS compliant and offers a durable solution for various industrial and commercial applications.
MOLEX 2074790003 L1NK 396 Header Specifications:
- overview: L1NK Connector System
- description: L1NK 396 Header, Vertical, Fully Shrouded, Tin (Sn) Plating, 3 Circuits, with Peg
- product_family: PCB Headers
- application: Power, Wire-to-Board
- current_max: 11.0A
- pitch_mating: 3.96mm
- circuits_loaded: 3
- circuits_maximum: 3
- color_resin: Black
- durability_mating_cycles: 25
- flammability: 94V-0
- glow_wire_capable: Yes
- material_metal: Brass
- material_plating_mating: Tin
- material_plating_termination: Tin
- material_resin: Liquid Crystal Polymer
- number_of_rows: 1
- orientation: Vertical
- pc_tail_length: 3.50mm
- packaging_type: Tray
- polarized_to_mating_part: Yes
- polarized_to_pcb: Yes
- shrouded: Fully
- surface_mount_compatible: No
- temperature_range_operating: -40° to +105°C
- termination_interface_style: Through Hole
- voltage_maximum: 350V AC/DC
- agency_certification: UL E29179
- datasheet_order_no: 987651-9951
- upc: 191130109883
- breakaway: No
- first_mate_last_break: No
- keying_to_mating_part: None
- lock_to_mating_part: Yes
- pcb_locator: No
- pcb_retention: None
- pcb_thickness_recommended: 1.60mm
- net_weight: 1.700/g
- reach_svhc: Not Contained Per -ED/88/2018 (15 January 2019)
- halogen_free_status: Low-Halogen
