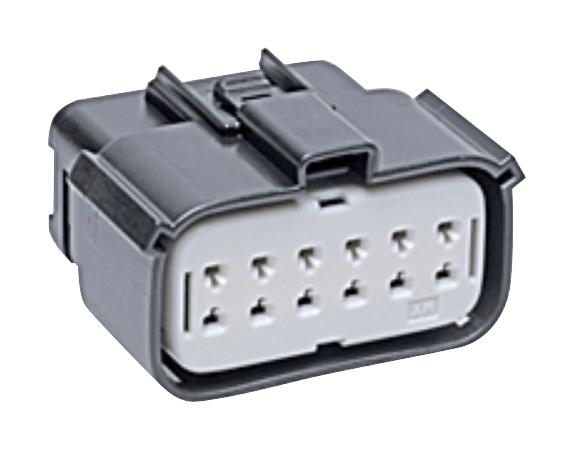

MOLEX 194180027 MX150L Industrial Connector
The MOLEX 19418-0027 is a robust industrial sealed connector system, part of the MX150L series. This 12-circuit receptacle is designed for power applications, including wire-to-board and wire-to-wire connections. It's suitable for 14-16 AWG wire and offers IP67-rated protection against dust and water ingress. While conforming to UL 1977 standards, it's not designed for automotive applications with specific USCAR or Toyota Connector Spec requirements. The connector features a polarized and stackable design, ensuring secure and reliable connections in demanding industrial environments.
MOLEX 194180027 MX150L Industrial Connector Specifications:
- overview: MX150L Industrial Sealed Connector System
- application: Power, Wire-to-Board, Wire-to-Wire
- comments: IP67 rated; conforms to UL 1977. NOT suitable for automotive applications
- circuits_maximum: 12
- color_resin: Black
- flammability: 94V-0
- gender: Receptacle
- glow_wire_capable: No
- lock_to_mating_part: Yes
- net_weight_g: 29.054
- number_of_rows: 2
- packaging_type: Bag
- panel_mount: No
- pitch_mating_interface: 5.84mm
- polarized_to_mating_part: Yes
- stackable: No
- temperature_range_operating_c: -40° to +125°
- current_maximum_per_contact_a: 18.0
- series: 19418
- mates_with: 19419 Plug, 19429 Panel Mount Plug
- use_with: 19420 Female Crimp Terminal
- agency_certification: UL E152602
- halogen_free_status: Low-Halogen
