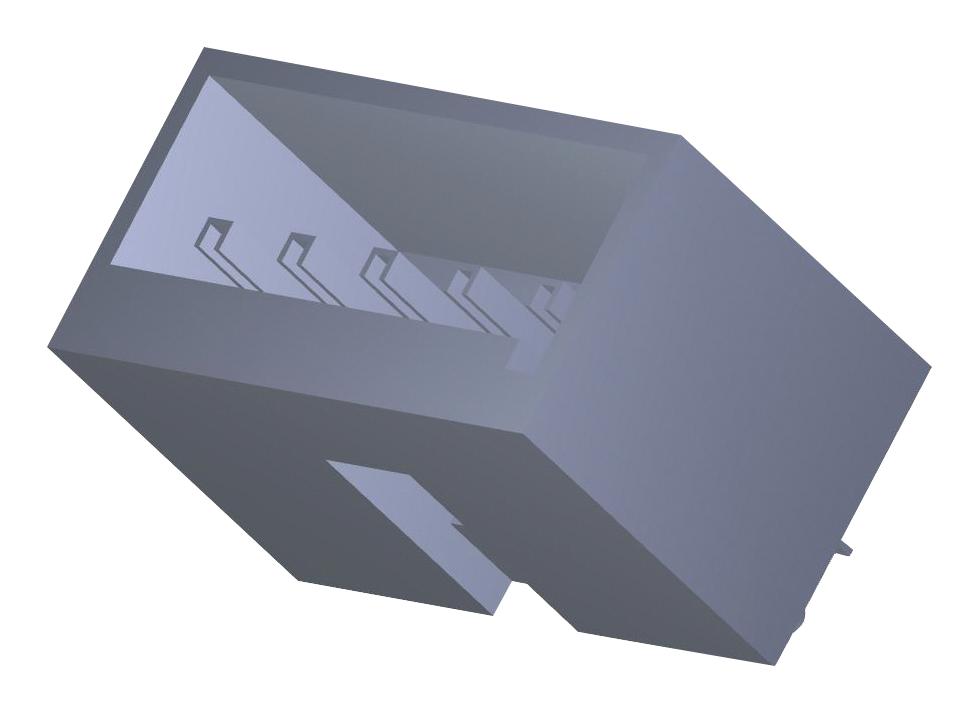

MOLEX 2074790005 L1NK 396 Header
The MOLEX 207479-0005 L1NK 396 Header is a robust connector solution designed for power and wire-to-board applications. This header features a vertical orientation and a fully shrouded design, providing enhanced protection and secure mating. The tin plating ensures excellent conductivity and corrosion resistance. It is part of the L1NK connector system and is compatible with the L1NK Receptacle Housing (207458). With a maximum current rating of 11.0A and a maximum voltage of 350V AC/DC, this header is suitable for demanding industrial environments. Its polarized design and keying features ensure proper alignment and prevent mismating.
MOLEX 2074790005 L1NK 396 Header Specifications:
- overview: L1NK Connector System
- description: L1NK 396 Header, Vertical, Fully Shrouded, Tin (Sn) Plating, 5 Circuits, with Peg
- agency_certification: UL E29179
- product_family: PCB Headers
- application: Power, Wire-to-Board
- current_max: 11.0A
- pitch_mating: 3.96mm
- circuits_loaded: 5
- circuits_maximum: 5
- color_resin: Black
- durability_mating_cycles: 25
- flammability: 94V-0
- glow_wire_capable: Yes
- material_metal: Brass
- material_plating_mating: Tin
- material_plating_termination: Tin
- material_resin: Liquid Crystal Polymer
- number_of_rows: 1
- orientation: Vertical
- pc_tail_length: 3.50mm
- packaging_type: Tray
- polarized_to_mating_part: Yes
- polarized_to_pcb: Yes
- shrouded: Fully
- surface_mount_compatible: No
- temperature_range_operating: -40° to +105°C
- termination_interface_style: Through Hole
- voltage_max: 350V AC/DC
- elv: Not Relevant
- rohs: Compliant
- reach_svhc: Not Contained
- halogen_free_status: Low-Halogen
