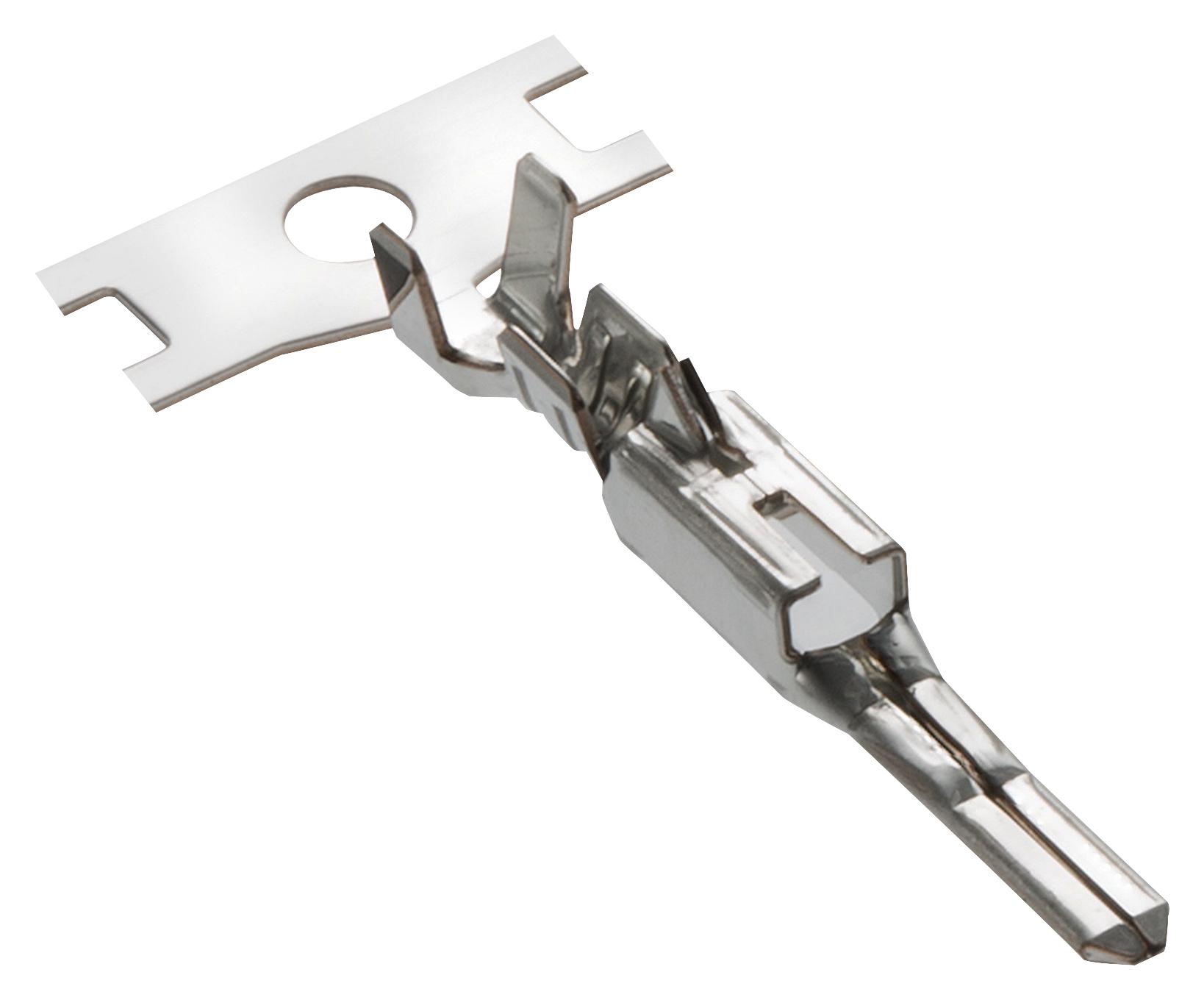

MOLEX 5056080000 Crimp Terminal
The Molex 5056080000 is a 2.50mm and 3.30mm pitch crimp terminal designed for wire-to-board and wire-to-wire connections. Made of copper alloy with tin plating, it accommodates 18-22 AWG wire sizes, suitable for applications requiring reliable electrical performance. Rated for a maximum of 6.0A and 300V AC/DC, it features a male gender with crimp or compression termination interface, ensuring secure and efficient connections. Ideal for electronic assemblies needing durable and precise terminal connections, this product is supplied in reel packaging for efficient handling and installation.
MOLEX 5056080000 Crimp Terminal Specifications:
- Pitch: 2.50mm and 3.30mm
- Material - Metal: Copper Alloy
- Material - Plating Mating & Termination: Tin
- Wire Size AWG: 18, 20, 22
- Wire Diameter: 1.55-2.60mm
- Current - Maximum per Contact: 6.0A
- Voltage - Maximum: 300V AC/DC
- Net Weight: 102.000 mg
- Packaging Type: Reel
- Termination Interface: Crimp or Compression
- Material Plating Min - Mating & Termination: 0.914um Tin
Buy the Molex Series CP Wire-to-Board and Wire-to-Wire Connector Systems: 5056080000
Purchase the Molex 5056080000 crimp terminal online for reliable wire-to-board and wire-to-wire connections. Designed with copper alloy and tin plating, it offers durability and corrosion resistance. Suitable for 18-22 AWG wires, it provides a secure crimp or compression interface rated up to 6A and 300V. Supplied in reel packaging for easy handling, making it ideal for manufacturing and repair projects requiring precise and durable electrical connections. Order now to ensure high-quality assembly and long-term performance.
Get Molex 5056080000 today—built for precision and long-lasting durability in electronic connection applications.
Frequently Asked Questions
Where can I buy MOLEX 5056080000?
You can click on the BUY or RFQ button to purchase 5056080000 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 5056080000?
You can download the 5056080000 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 5056080000?
MOLEX
