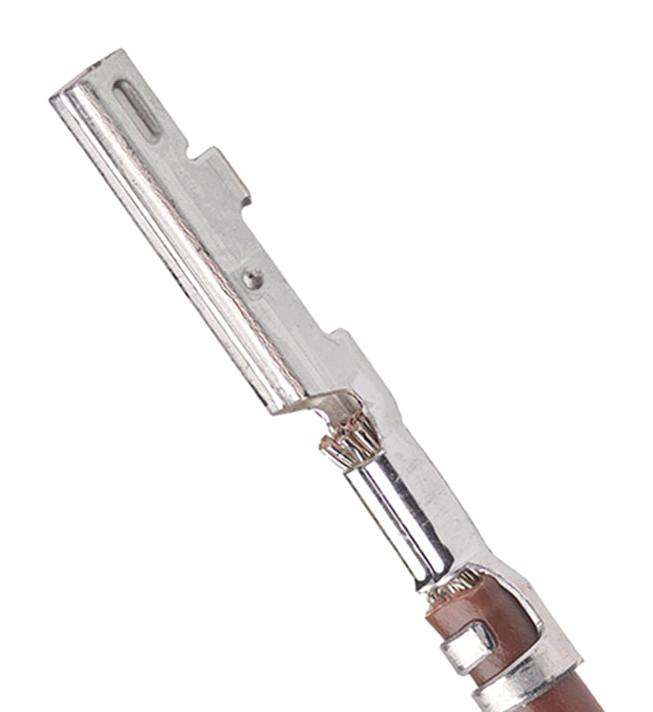

MOLEX 2077770002 Squba Receptacle Terminal
The MOLEX 207777-0002 is a Squba sealed wire-to-wire crimp terminal, part of the 207777 series. Designed for robust connections, it accommodates 18-20 AWG wire sizes and offers a maximum current rating of 11.5A and a maximum voltage of 600V. The terminal's matte tin plating on both mating and termination surfaces ensures reliable performance in demanding environments. It is RoHS compliant and suitable for power and signal applications in various industrial and automotive settings. Pair with Squba 3.6 Receptacle Housing 207782 for a complete assembly.
MOLEX 2077770002 Squba Receptacle Terminal Specifications:
- overview: Squba Sealed Wire-to-Wire Connectors
- description: Squba 3.6 Receptacle Terminal, Matte Tin Plating, 18-20 AWG, Reel
- product_family: Crimp Terminals
- application: Power, Signal, Wire-to-Wire
- durability_mating_cycles: 25
- gender: Female
- material_metal: Copper Alloy
- material_plating_mating: Matte Tin
- material_plating_termination: Matte Tin
- net_weight_g: 0.201
- packaging_type: Reel
- plating_min_mating_um: 2.540
- plating_min_termination_um: 2.540
- termination_interface_style: Crimp or Compression
- wire_insulation_diameter_mm: 1.46-2.10
- wire_size_AWG: 18, 20
- wire_size_mm2: N/A
- current_max_per_contact_a: 11.5
- voltage_max_v: 600
- upc: 191130144792
- rohs_compliance: Compliant
- reach_svhc_compliance: Not Contained
- halogen_free: Low-Halogen
