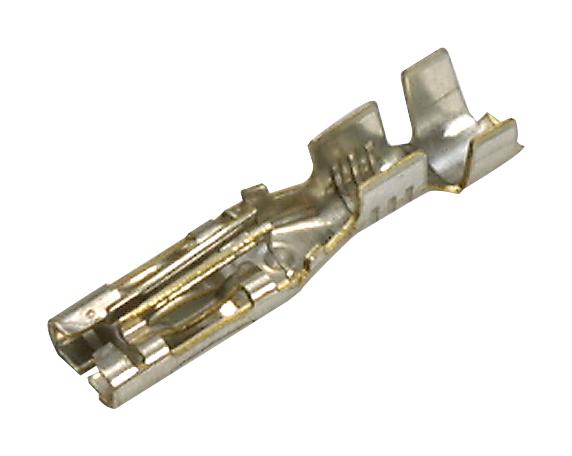

MOLEX 433753001 Crimp Terminal
This male crimp terminal is designed for crimping 18-20 AWG wire with a maximum insulation diameter of 4.57mm. Made of tin-plated brass, it provides reliable contact quality for power applications. It is compatible with Sabre Power Connectors and suitable for wire-to-plate or wire-to-wire connections. The reel-packaged terminal supports up to 25 mating cycles, ensuring durability and efficiency in various electrical assemblies. Its high-performance specifications meet industry standards for safety and longevity, optimized for quick, secure crimping with compatible tools.
MOLEX 433753001 Crimp Terminal Specifications:
- Application: Power, Wire-to-Board, Wire-to-Wire
- Material - Metal: Brass
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Wire Size AWG: 18, 20
- Wire Insulation Diameter Max: 4.57mm
- Voltage - Maximum: 600V
- Current - Maximum per Contact: 18.0A
- Durability (mating cycles max): 25
- Gender: Female
- Packaging Type: Reel
- Net Weight: 0.345g
- Crimp or Compression: Crimp
- Termination Interface Style: Crimp Terminal
- Insulation Diameter: 4.57mm
- Max Crimp Size: 3.18mm width x 0.51mm thickness
- RoHS and REACH compliant, halogen-free
Buy the Molex Series Sabre Crimp Terminal: 0433753001
Secure your electrical connections with Molex's Sabre Crimp Terminal, supporting 18-20 AWG wires with a maximum insulation diameter of 4.57mm. Crafted from tin-plated brass, it offers excellent conductivity, corrosion resistance, and durability for power applications. Its reel packaging facilitates automated assembly lines, supporting up to 25 mating cycles for long-lasting performance. Compatible with industry-standard tools, this terminal ensures a precise, reliable crimp every time. Ideal for wire-to-wire and wire-to-plate connections, it is RoHS compliant and Halogen-Free, guaranteeing safety and environment-friendly operation.
Order your Molex Series Sabre Crimp Terminal 0433753001 today and ensure reliable, quick, and secure electrical connections for your power projects.
